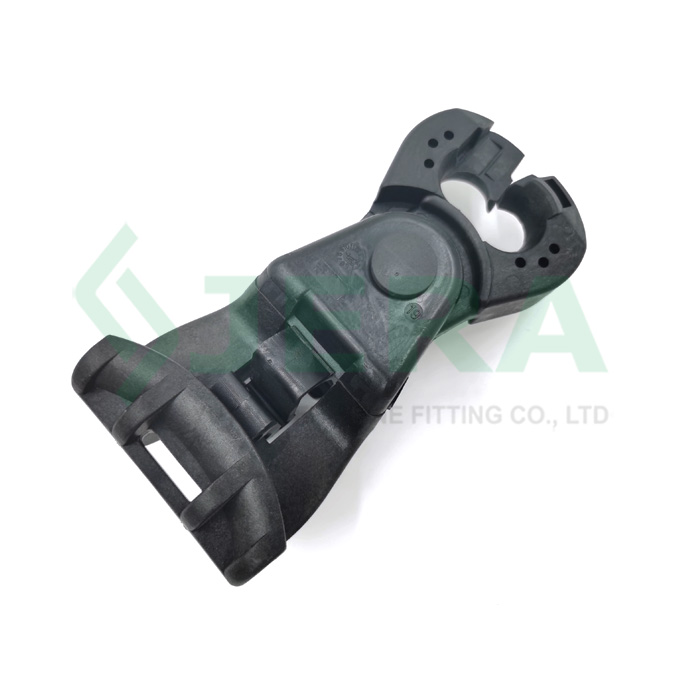

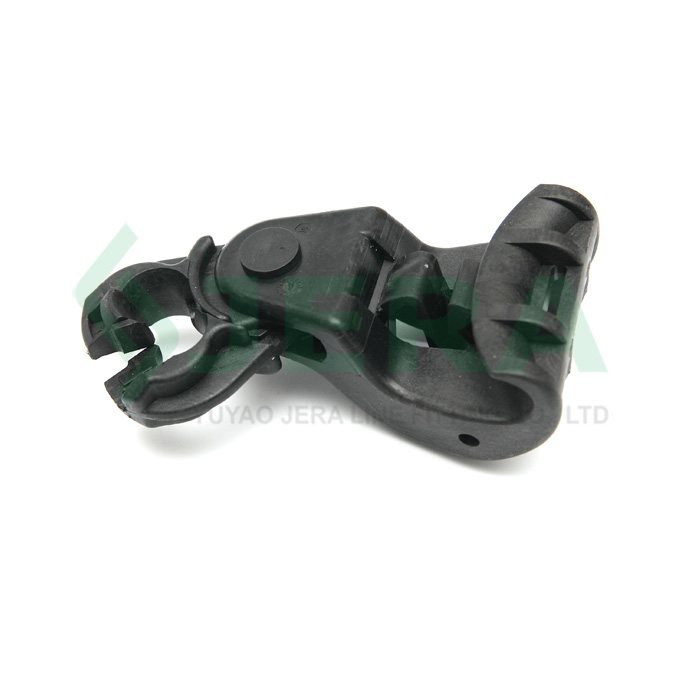

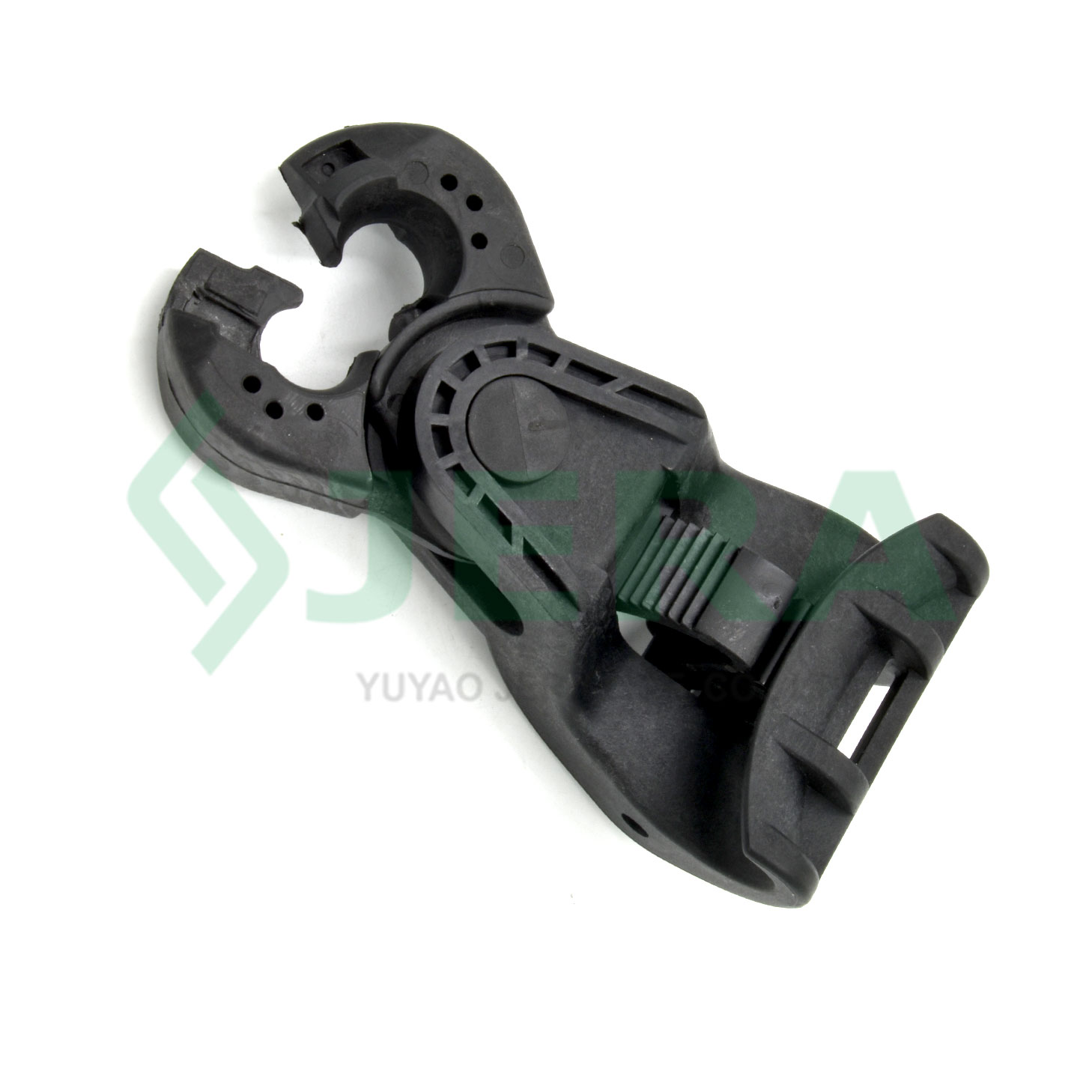

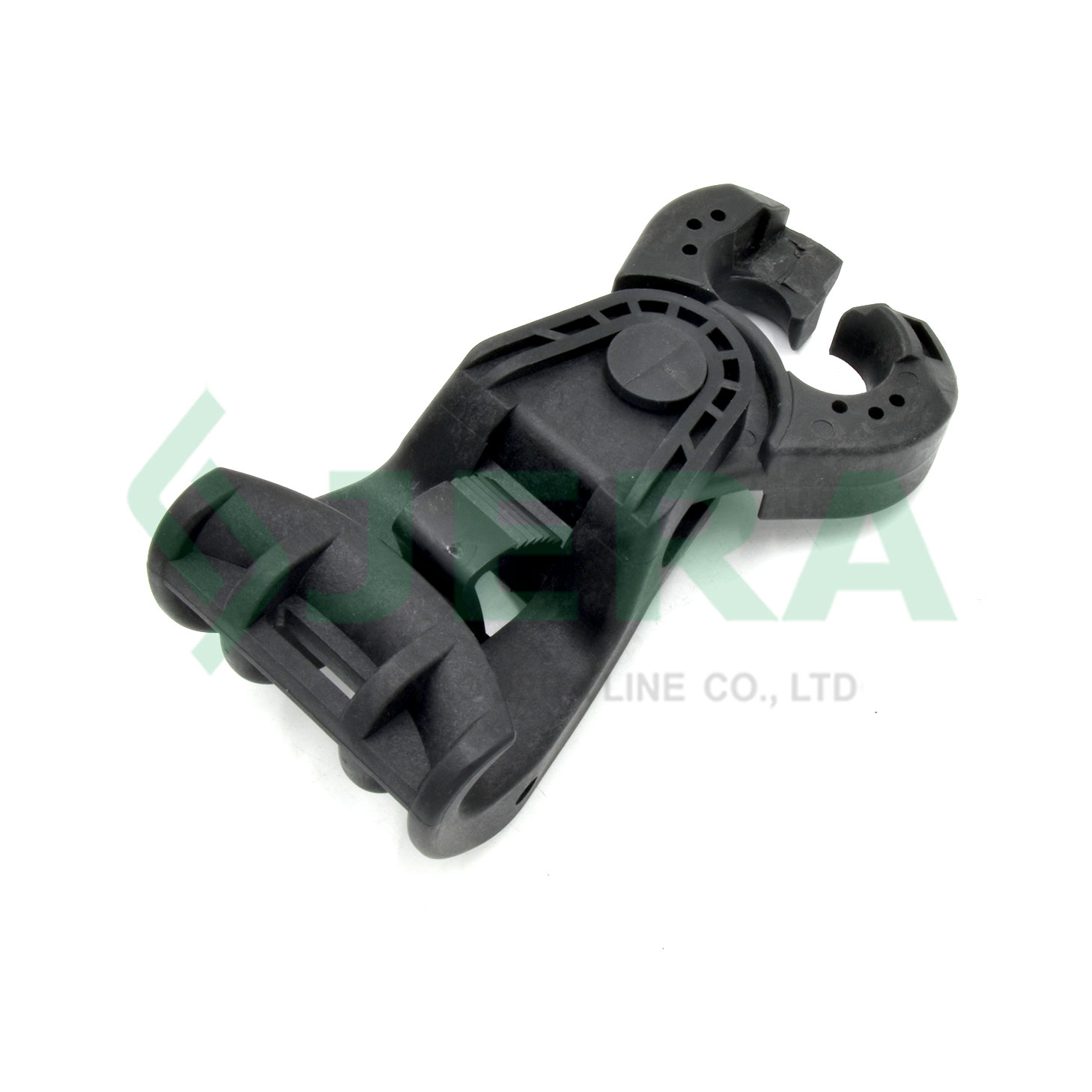

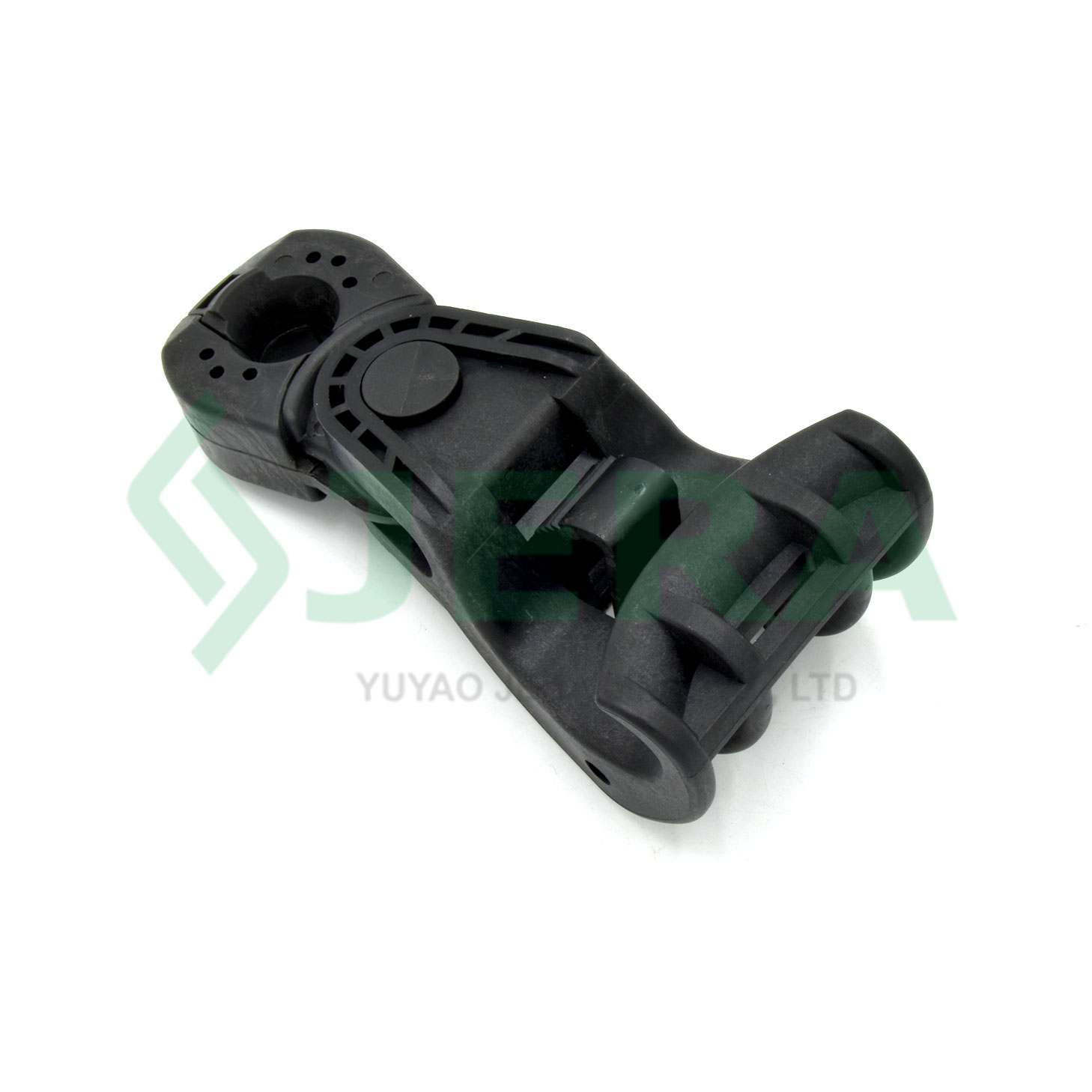

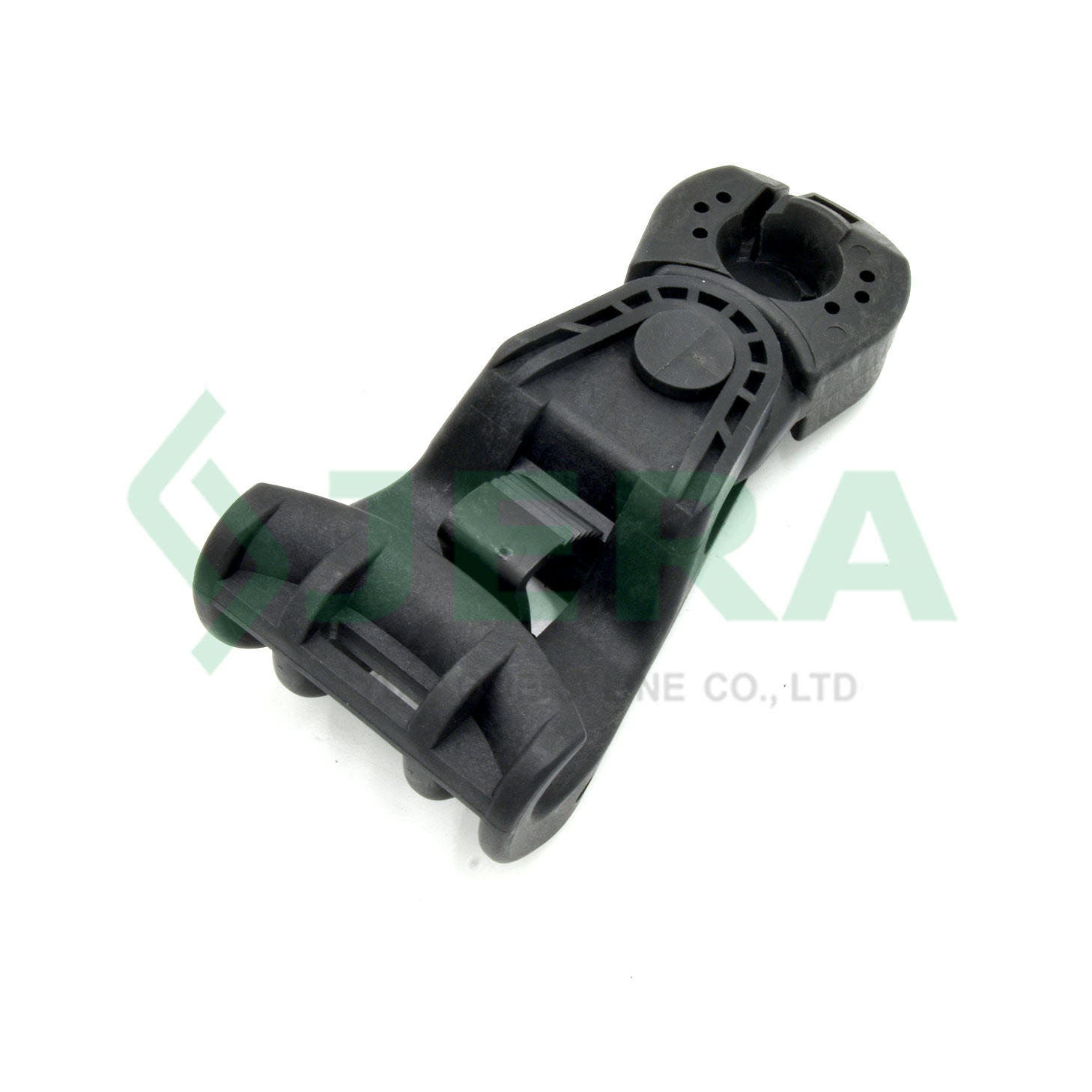

Suspension clamp assembly, ES-1500
ES-1500
Description:

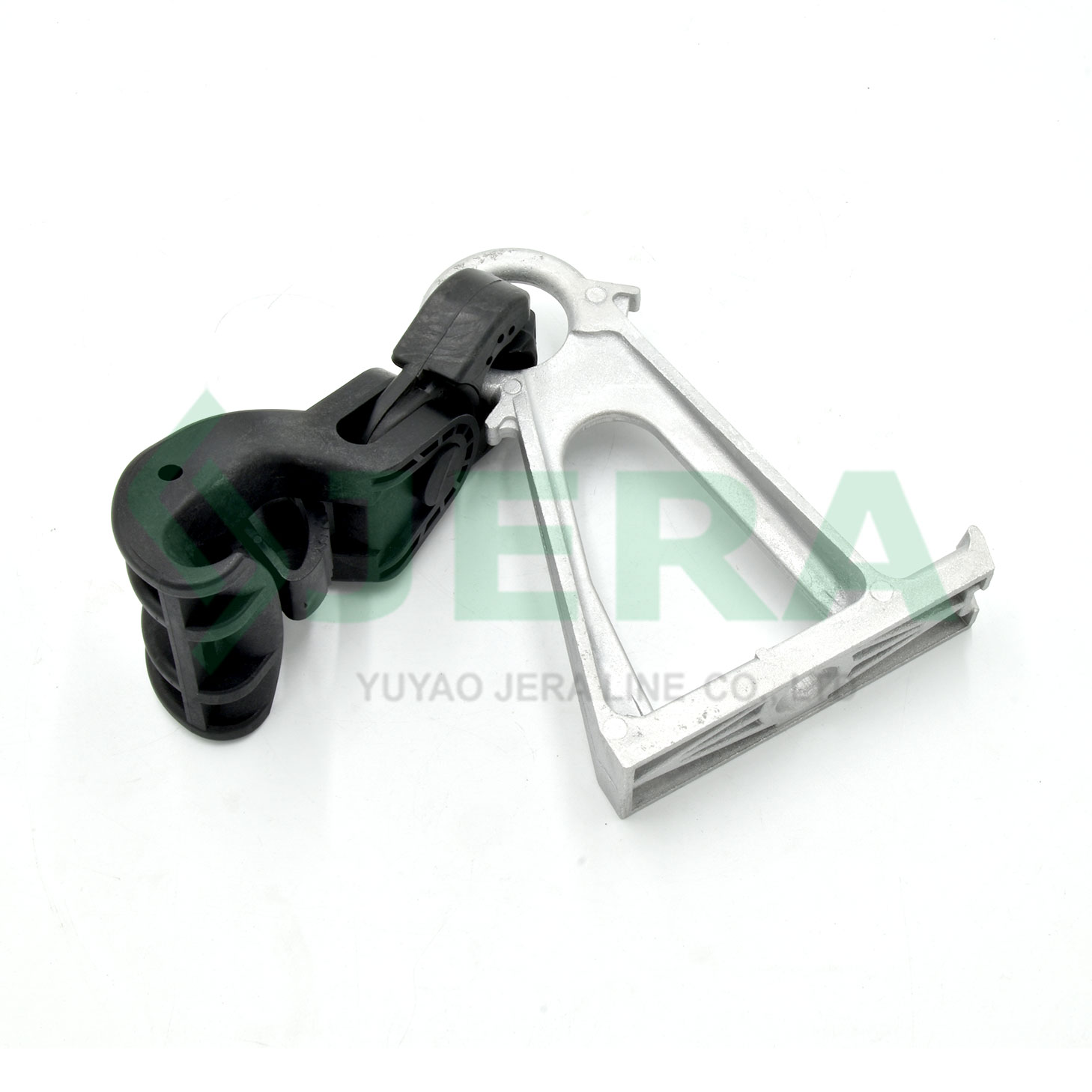

Suspension clamp assembly ES-1500 is a combination of suspension clamp and pole bracket, used to suspend ADSS cable while construction of internet network line construction.

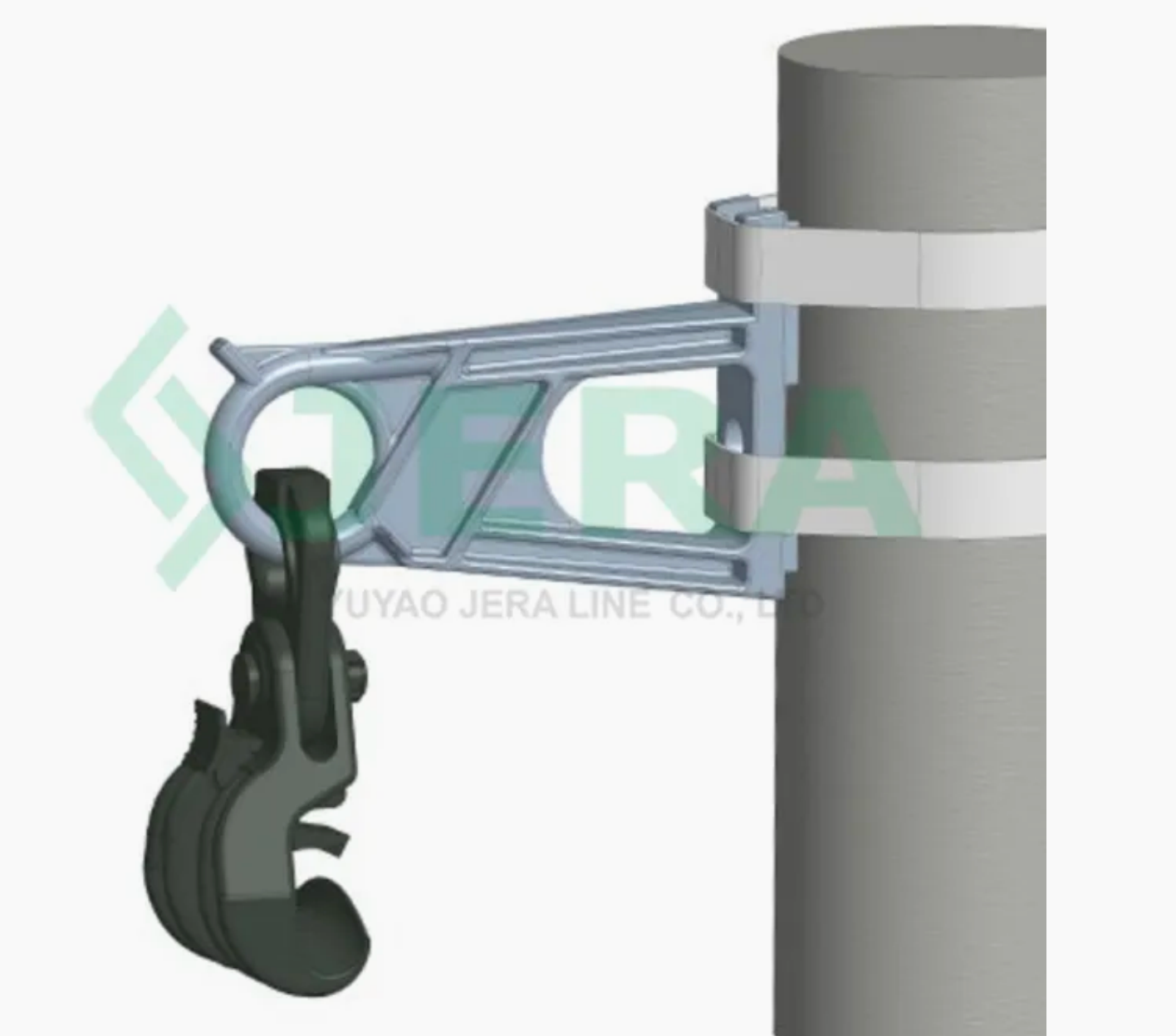

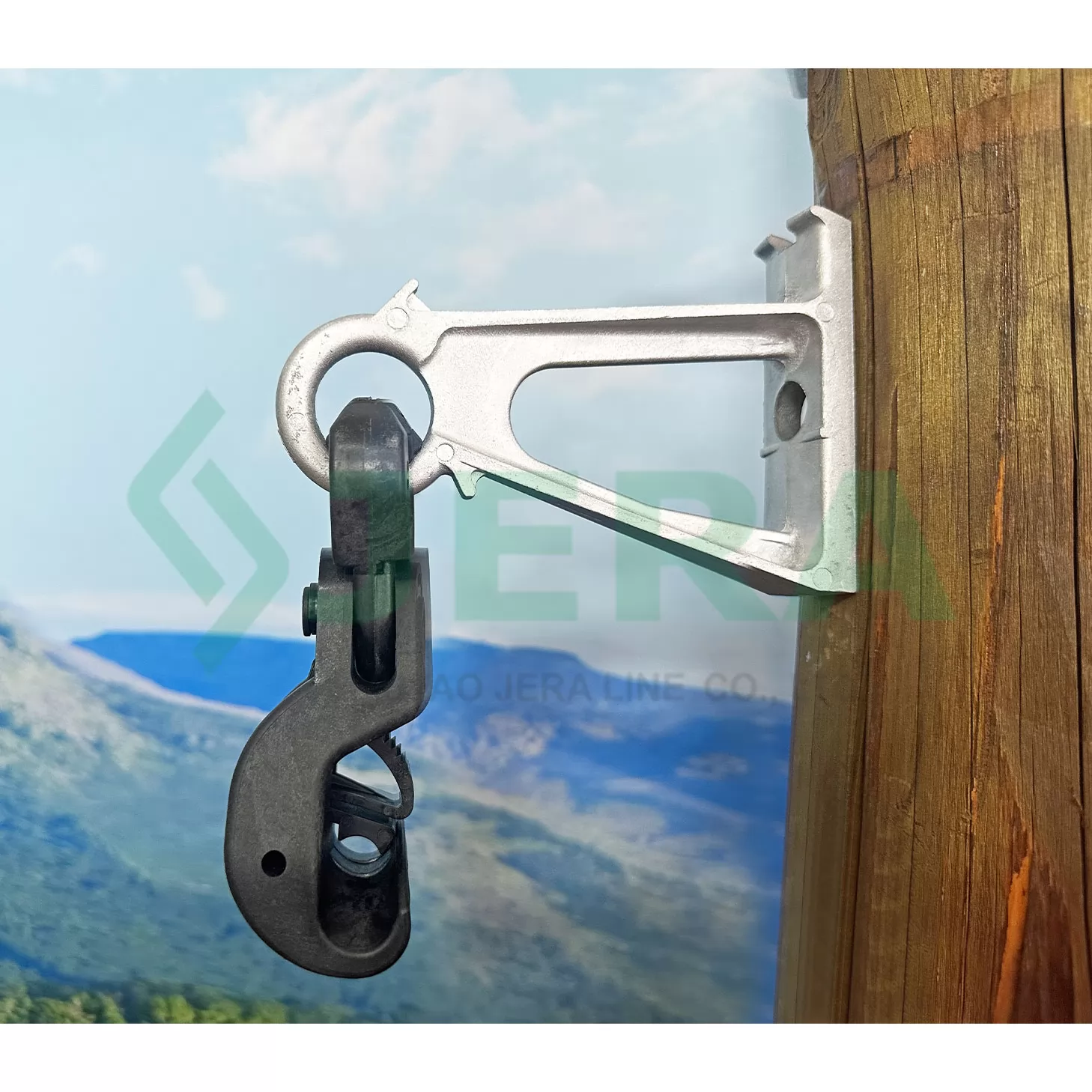

Pole mounting assembly attach to towers, poles or walls, can be installed in straight direction, for angles up to 30°towards the pole and up to 50°away from the pole.
- Cable type: Round
- Cable size:4.5-11 mm
- Span:50-100 m
- MBL: 8 KN
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Locking and clamping ADSS cable without other tools
- Made of UV resistant plastic and aluminum alloy, durable
- Attached on pole by stainless steel band or 14 or 16mm bolts
- Suitable for cable diameter 4.5-11mm round fiber optic cables
- Suspension bracket with fuse in case of overload
- No damaging to conductor insulation during installation or application
- High environmental stability
- Competitive price
SPECIFICATION
The clamp applied in:
Cable diameter: 4.5-11 mm
MBL, kN: 8.0

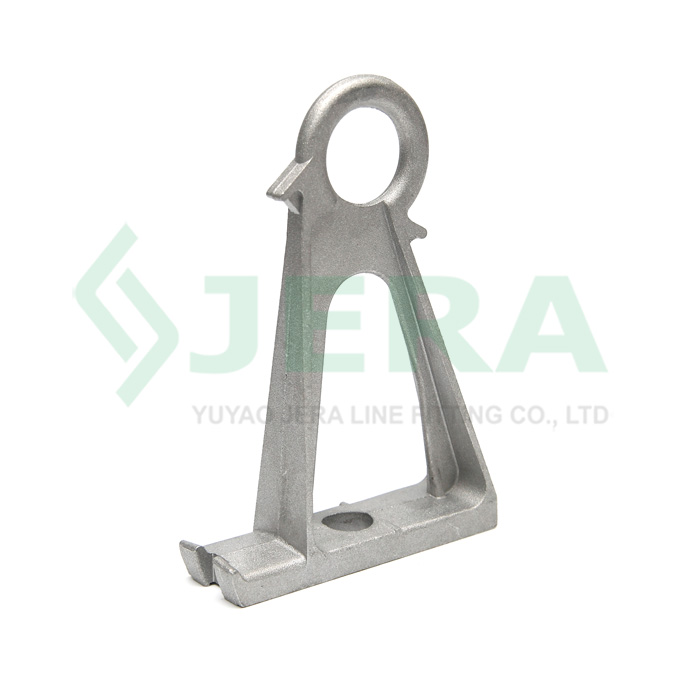

The cable clamp is used to connect and fix the optical cable wires. The Suspension clamp is divided into two parts, and the stainless steel 304 bracket can fix the ES-1500 on the utility pole.
The plastic interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.
The shell is made of plastic with strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.
APPLICATION
Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.
Manufacturing
Watch Our Factory Video

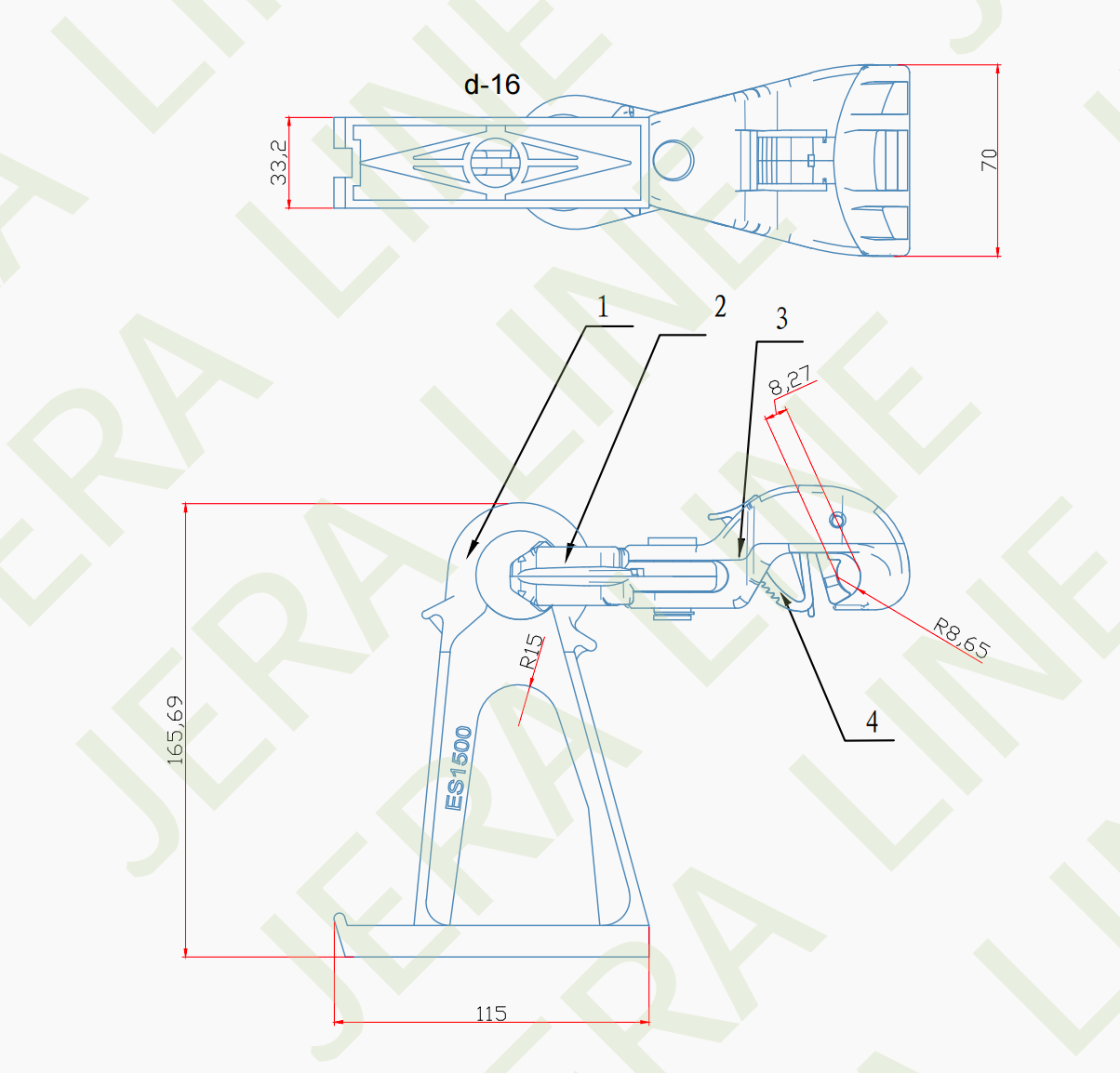

Technical Specification
|
Product code |
ADSS cable size |
MBL, kN |
Weight. kg |
|
ES-1500 |
Φ4.5-11 |
8 |
0.36 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
