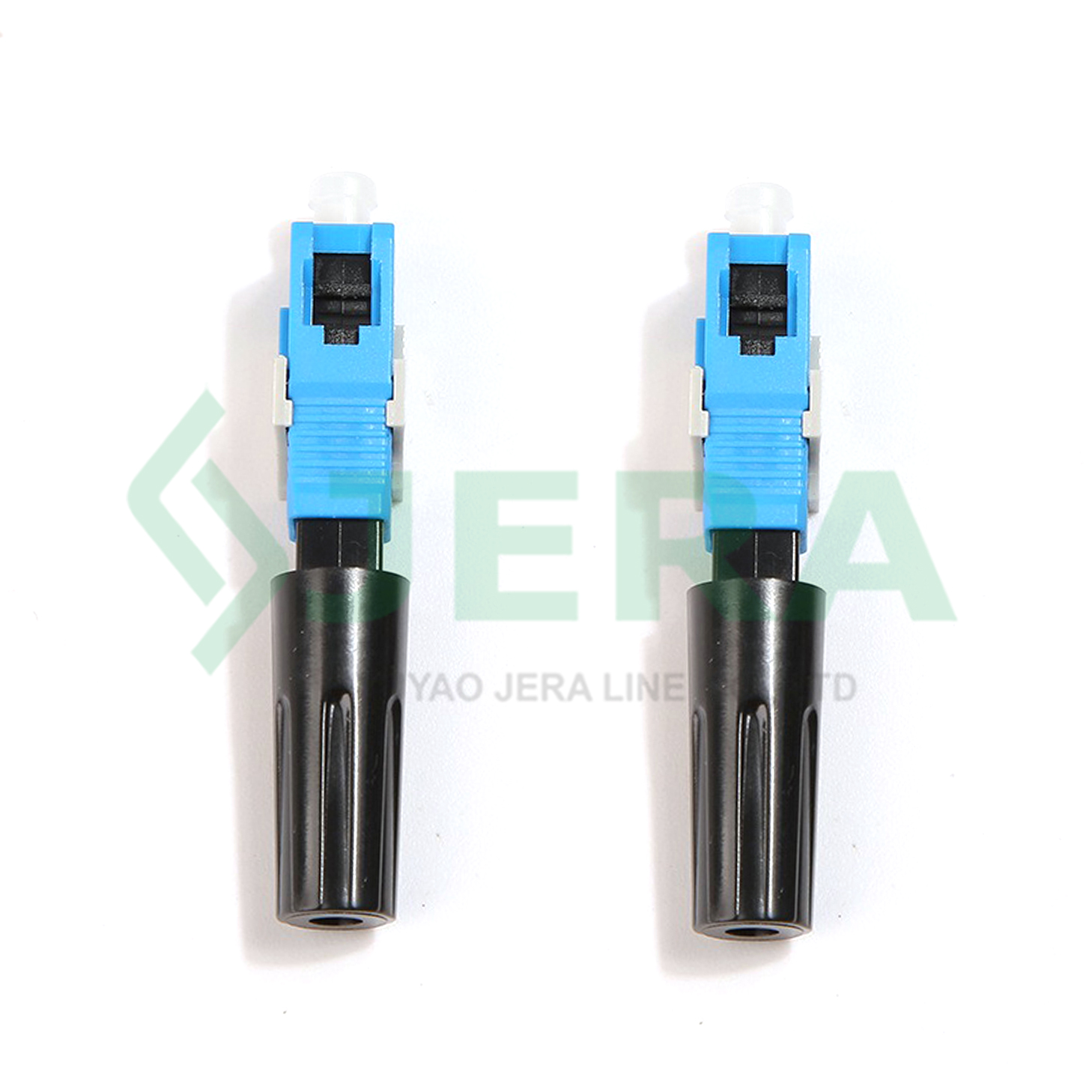

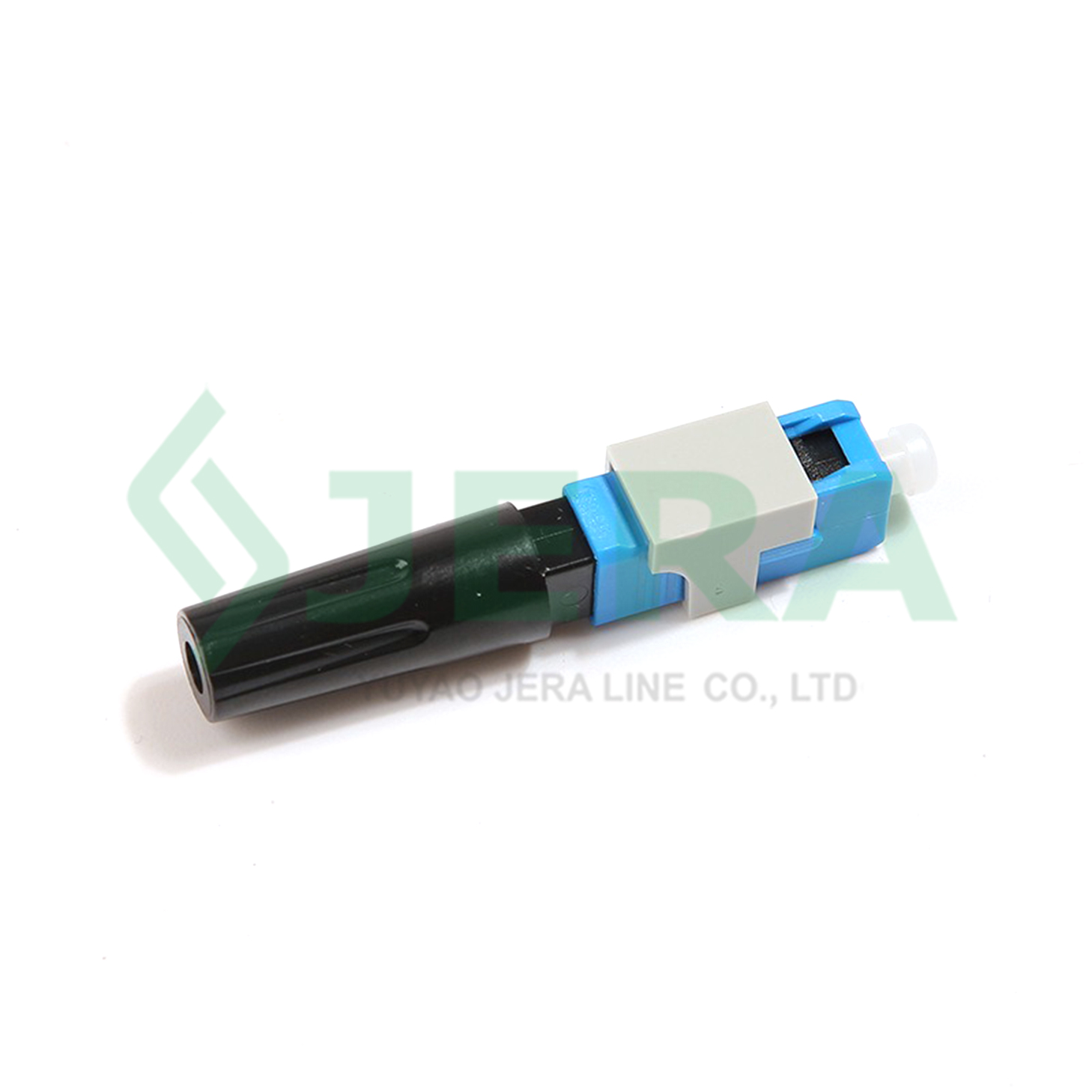

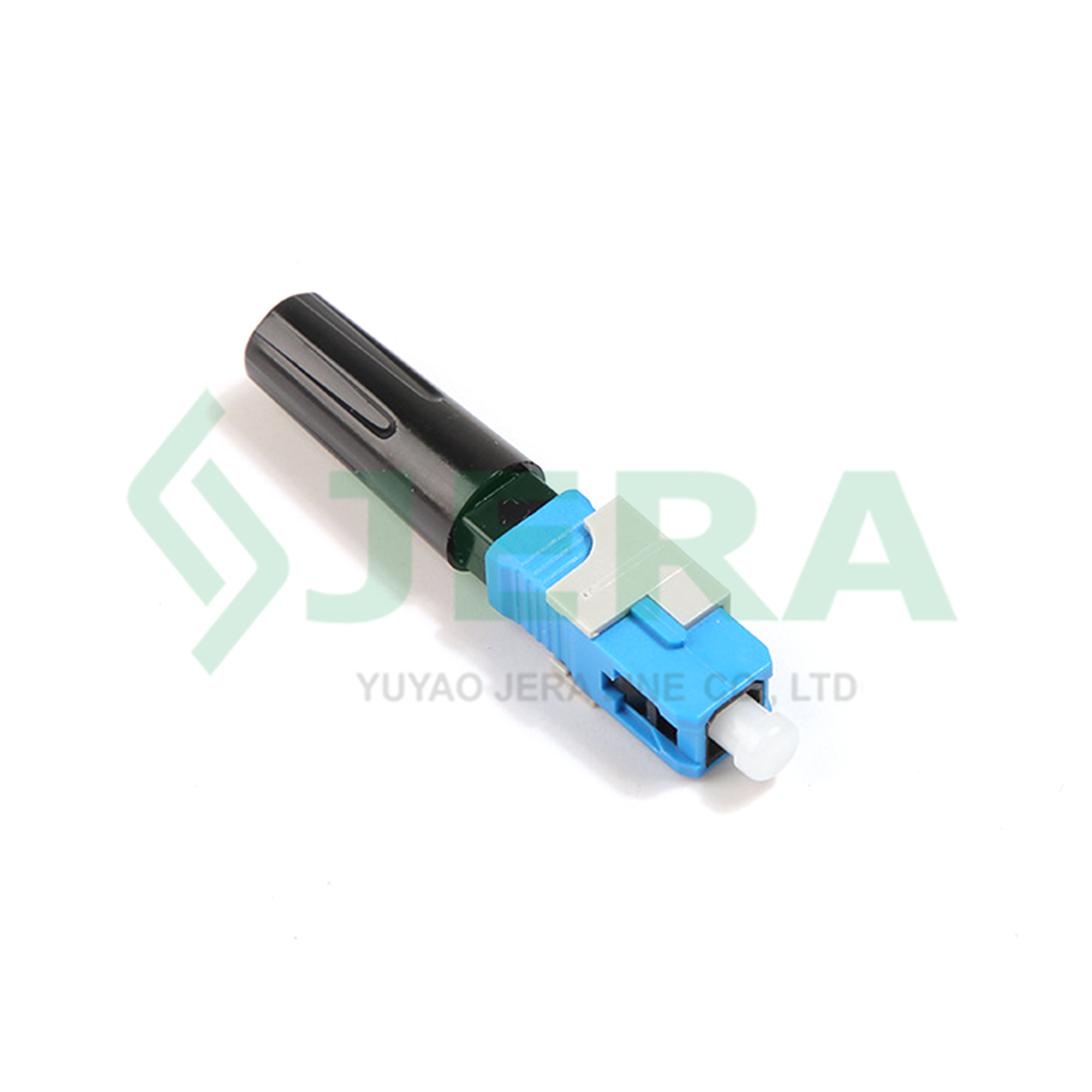

SC-UPC Fast Fiber Connector, Type 10
SC-UPC Fast Fiber Connector, Type 10
Description:

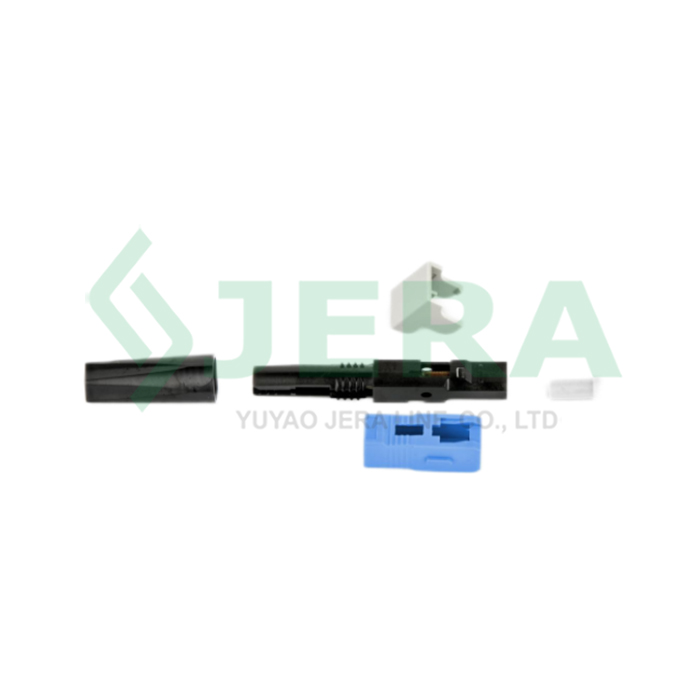

SC-UPC Fast Fiber Connector, Type 10 also called SC/UPC Fiber Optic Fast connector is a pre-polished field assembly connector that completely eliminates the need for field manual polishing. This connector utilizes proven mechanical splice technology ensuring precise fiber alignment, a pre-stripped fiber pigtail, and proprietary index-matching gel to offer an immediate low loss termination to either single-mode or multimode optical fibers.
- Type: Simplex
- Socket type: SC
- Polish type: UPC
- Area: Outdoor/Indoor
- Product detail
- Specification
- Video
- Inquiry
Key features
- No manual polishing required on site
- Direct plug and pull
- Unique design to avoid damage to the end face when plugging and unplugging
- Small size and saving space
- Antistatic and acid and alkali resistance
- Competitive price
SPECIFICATION
Fiber optic adapter generally consists of three parts, two fiber optic connectors and a coupler.
Two optical fiber connectors connect the two optical fiber tail ends. The coupler acts as a bushing.
SC (Standard Connector) ：The standard square joint is made of engineering plastic, which has the advantages of high temperature resistance and not easy to oxidize.
UPC: Low attenuation, often used in ODF internal fiber jumpers.
The casing is usually made of wear-resistant, dustproof, and waterproof materials. The connection interface is usually made of ceramic. This design protects internal components from the external environment, ensures stable fiber connection and reduces optical signal loss.
Adapters sometimes also include some auxiliary parts, such as sealing rings, locks, etc., to cope with complex environments.
APPLICATION
Jera Line is a factory specializing in the research and production of FTTX fiber optic cable deployment. We produce: fast fiber optic connectors, outdoor waterproof hardened type adapter, fiber optic hybrid adapter and so on. If you choose professional and high-quality fiber optic quick connectors, please contact us immediately.
Applied Indoor, for connecting fiber optic cable to various devices such as routers, switches, and servers, ensuring seamless and high-speed data transmission within a confined space.
Manufacturing
Watch Our Factory Video
Technical specification
|
Item |
Type 10 |
|
Length |
50mm |
|
Ferrules |
SC/UPC |
|
Inner Diameter of ferrules |
125um |
|
Insertion Loss |
AVG≤0.3dB MAX≤0.5dB |
|
Return Loss |
UPC≥45dB APC≥50dB |
|
Working Temperature |
-20~+75℃ |
|
Storage Temperature |
-40~+85℃ |
|
Cables to use with(mm) |
Drop cable：2*1.6mm/2.0*3.0mm/2.0*5.0 Round cable :5.0mm/3.0mm/2.0mm/0.9 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
