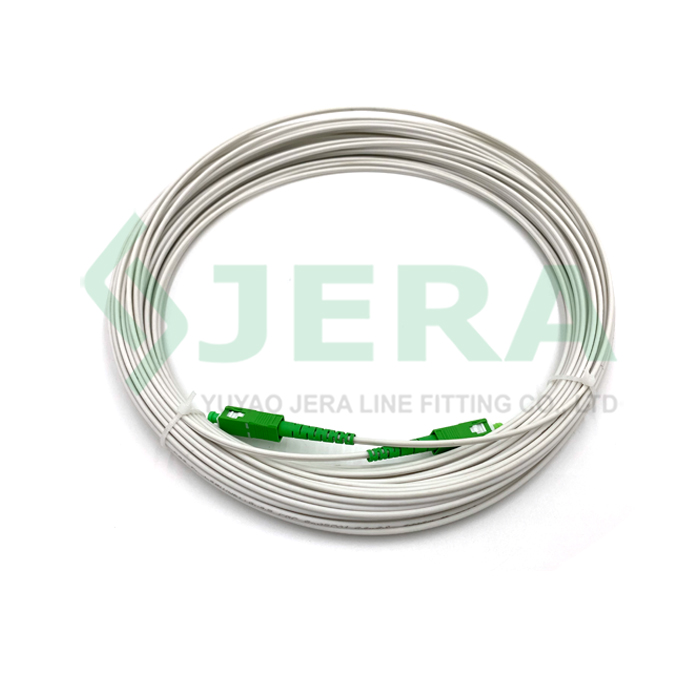

SC/APC FTTH optical drop patch cord 25M
SC/APC FTTH optical drop patch cord 25M
Description:
SC/APC FTTH optical drop patch cord 25M also called GJXH indoor ftth fiber patch cord is a fiber optic drop cable each end pre-connected with SC/APC connector use to connect CATV, optical switch or telecommunication equipment. It help to speed us FTTH line installation and save cost.
- Application: Outdoor/Indoor
- Fiber quantity: 1 fiber
- Cable dimensions: 2.0*3.0 mm
- Length：25 m
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Easy to use, no need specific skills

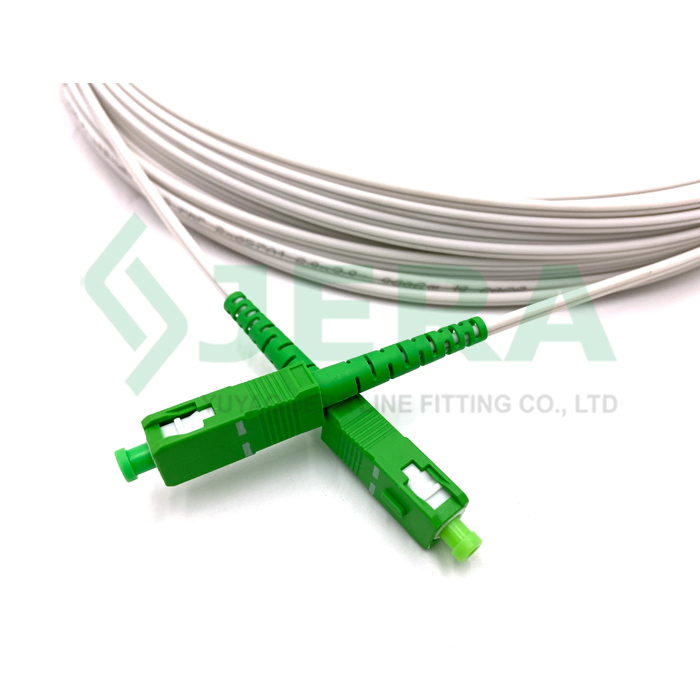

- Pre-terminated with SC/APC connectors
- Cable reinforced with 0.4mm steel rods
- LSZH cable outer jacket, white and black are available
- Quality guarantee, all passed inspection before shipment
- Low insertion loss, high return loss
- High stability during application
- Direct factory price
SPECIFICATION
The cable patch cords consists of:
- The cable dimensions:
- Width: 3.0 ± 0.2mm
- Height: 2.0±0.2mm
- Fiber quantity is 1 fiber.
- LSZH jacket sheath, UV protected.
Optical fiber of Single mode G657A1 / G657A2 grades of fiber standards.
LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.
APPLICATION

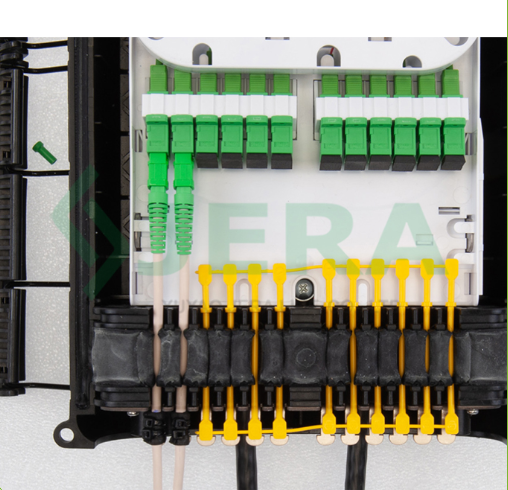

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.
Manufacturing
Watch Our Factory Video
Technical specification
|
Item |
Value |
|
Polish types |
SC/APC |
|
Fiber cores |
G652D, G657A1, G657A2 |
|
Fiber counts |
Simplex |
|
Fiber modes |
Single-mode 9/125 |
|
Cable color |
White |
|
Size,mm |
2.0*3.0 |
|
Tensile strength |
200 |
|
Length,m |
25 |
|
Insertion losses(IL),dB |
≤0.3 |
|
Material |
LSZH |
|
Working temperature |
-40~+85℃ |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY

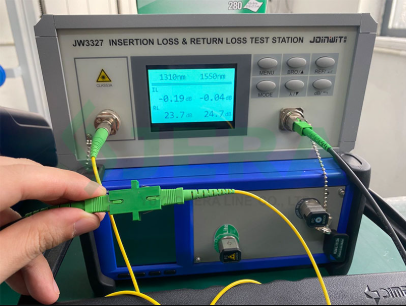

TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
