Pigtail hook bolt, PB-14-300

Pigtail hook bolt, PB-14-300
Pigtail hook bolt, PB-14-300
Pigtail hook bolt, PB-14-300
Pigtail hook bolt, PB-14-300
Pigtail hook bolt, PB-14-300
Pigtail hook bolt, PB-14-300
Pigtail hook bolt, PB-14-300
Pigtail hook bolt, PB-14-300
Model No. :

PB-14-300

Description:

Pigtail hook bolt PB-14-300 called pole line pigtail bolt is developed to use on wooden pole, concrete pole to hang the dead end clamp or suspension clamp during outdoor aerial FTTH network or electrical line.

    • Bracket type: Tension
    • Application: Pole
    • Span: 70-200 meters
    • MBL: 10 KN
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

  • Easy installation with low assembly costs
  • Both wooden and concrete poles application
  • Hot dip galvanized steel processed, guarantee long time usage
  • Perfect environment stability
  • With high mechanical strength
  • Fair price with good quality
Pigtail hook bolt, PB-14-300 Pigtail hook bolt, PB-14-300

SPECIFICATION

Pigtail hook bolt PB-14-300 called pole line pigtail bolt is developed to use on wooden pole, concrete pole to hang the dead end clamp or suspension clamp during outdoor aerial FTTH network or electrical line.

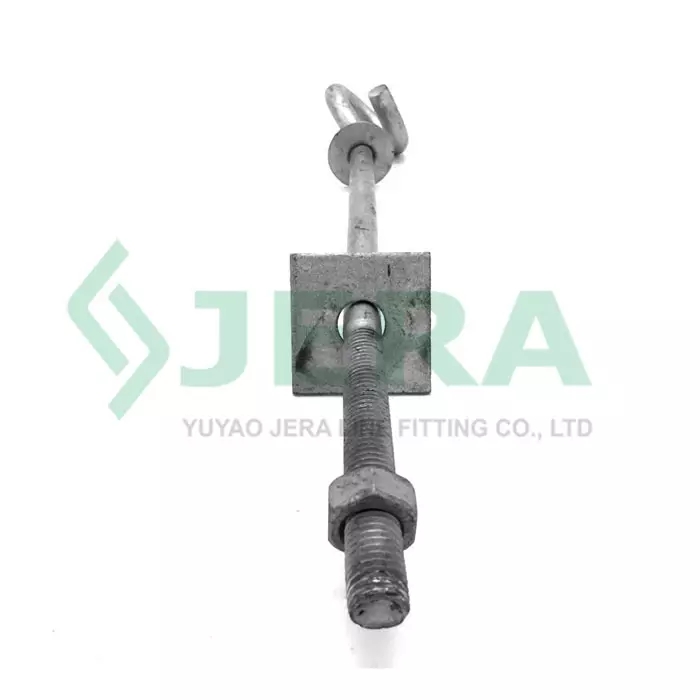

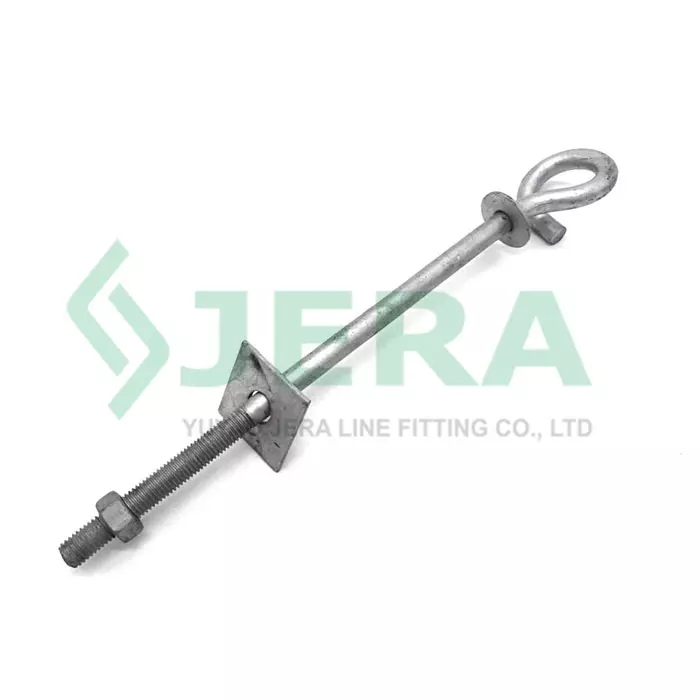

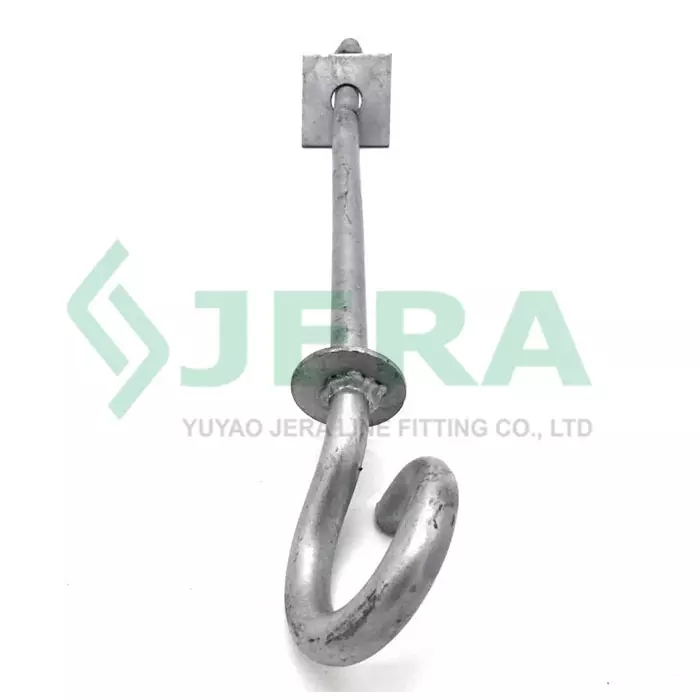

The helical end of this pole line hardware is like a pig tail, so it was called pole pigtail bolt or pigtail hook. It was made of high quality steel with hot dip galvanized finish, which is a common steel anti-rust process in market.

The complete set of this pole bolt compose of: Single piece of main body, two washers and a nut, these two washers hold poles will and prevents any movement during installation. The installation of this pole is very simple, it doesn’t need a specific procedure, that mean you can quickly put it in to use after attaching and tightening this bolt on poles.

read more

APPLICATION

The package of this poleline bolt is simple white woven bags since it is heavy duty and carton box maybe destroy easily. The diameter of threads can be adjustable according project demands, as well as the requirement of mechanical strength. Jera is a direct Pigtail hook bolt factory, operating according to ISO9001:2015.

Jera line supply both fiber optic cable deployment and low voltage cable components for our clients in outdoor and indoor. We devote ourselves to provide convenient design, competitive product for all our customer. And OEM and RnD service is also available for us.

Feel free to inquiry about this Pigtail hook bolt price.

read more

Manufacturing

    fiber web manufacturer

Watch Our Factory Video

Technical specification

Product code

Material

Nut

Diameter,mm

Length,mm

Thread length,mm

MBL,KN

PB-14-300-110

Hot dip galvanized steel

M22

14

300

110

10
