Outdoor fiber optic distribution box, FODB-8.5
FODB-8.5
Description:

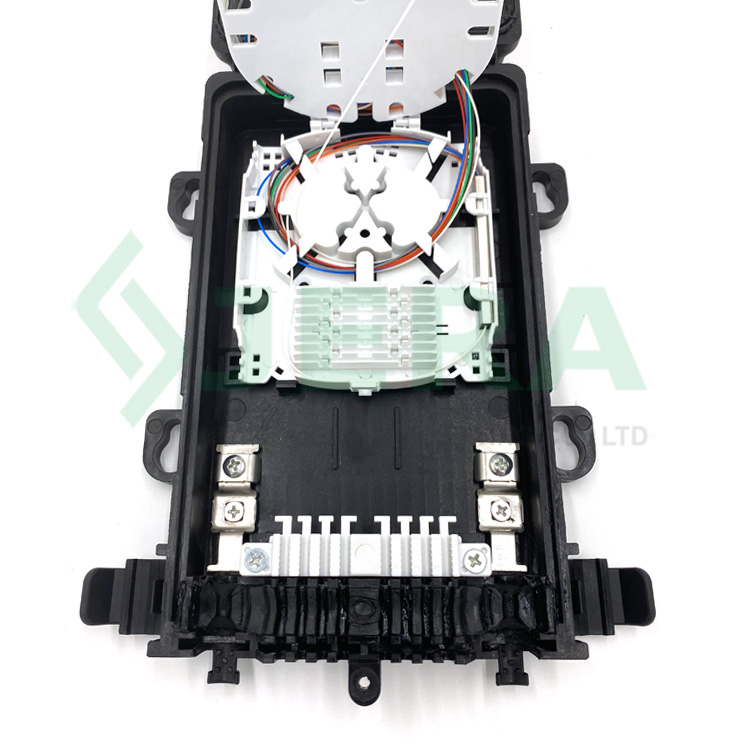

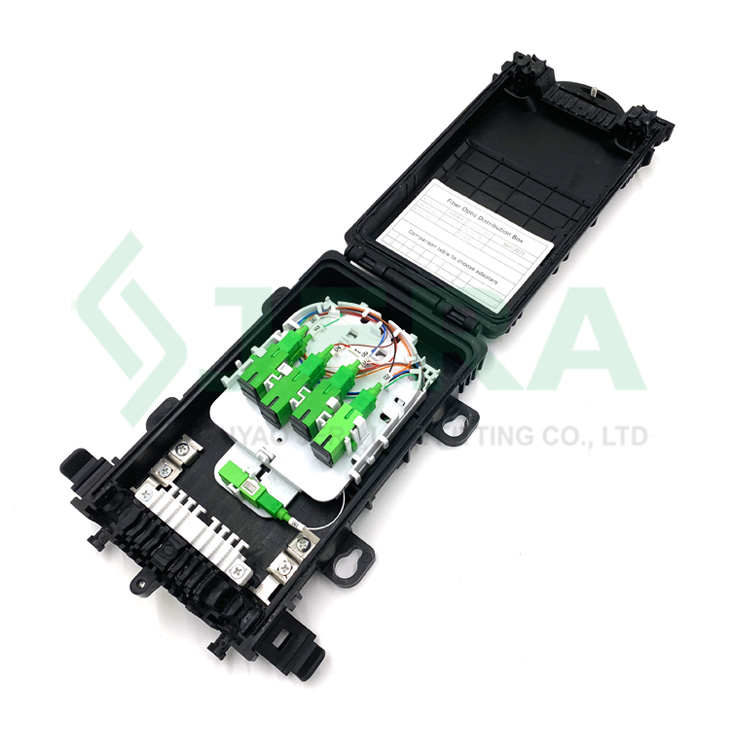

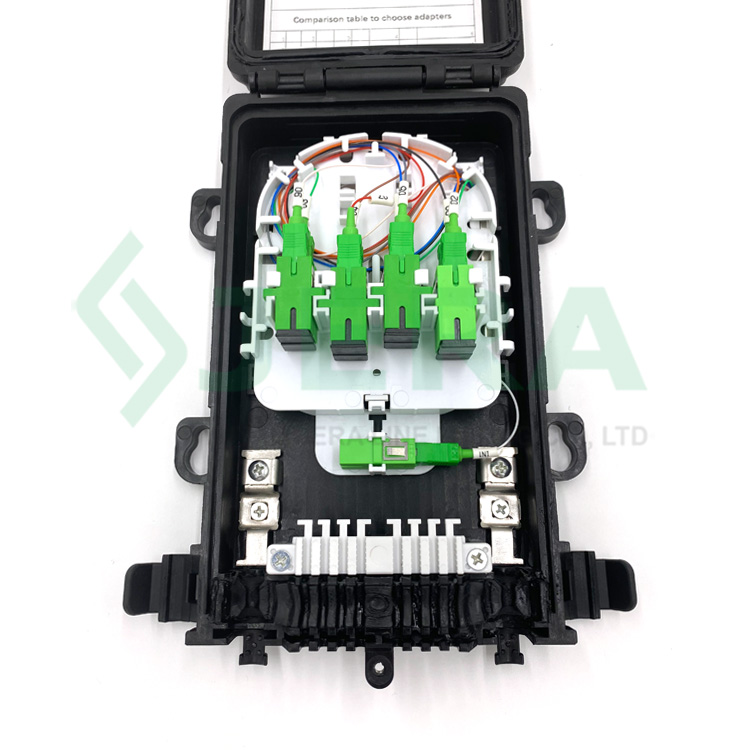

Outdoor fiber optic distribution box FODB-8.5 also called FTTH fiber termination box, is a product developed to terminating feeder optic cable to fiber optical cords, patch cords, pigtail cords in FTTH (Fiber to home) deployment.
- Feeding cable: 2 of Ø3-12
- Drop cable: 8 of Ø2-3
- Max splicing capacity: 8（16*）
- Adapter SC type: 8+2
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Intergrated seal sealed , IP68 grade protection
- Compact size, perfect for aerial or duct applications

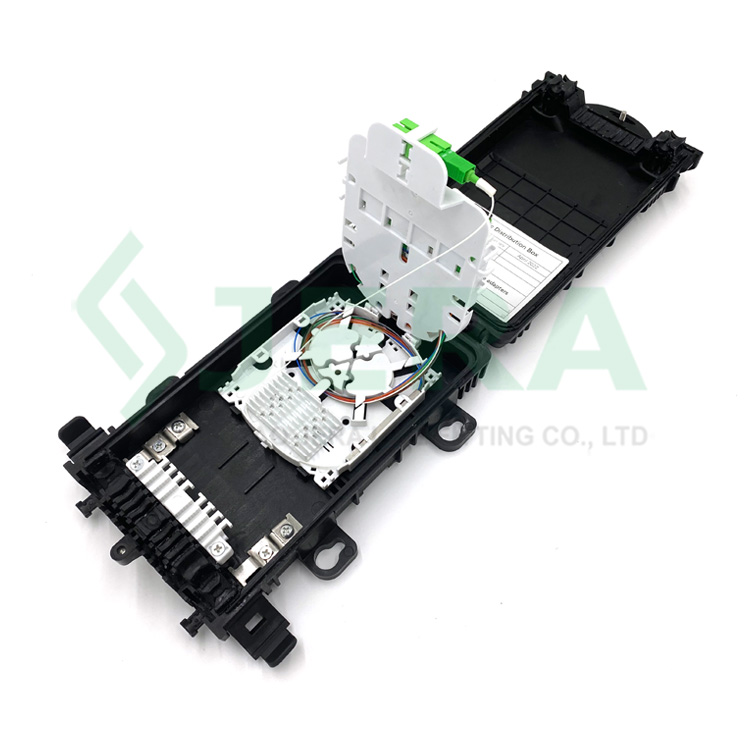

- Fiber optic PLC splitter or Mini cassette splitter installation
- Two cable inputs and 8 outputs ports
- Made of high quality UV resistant plastic, durable
- Quick and easy access for drop cable connection

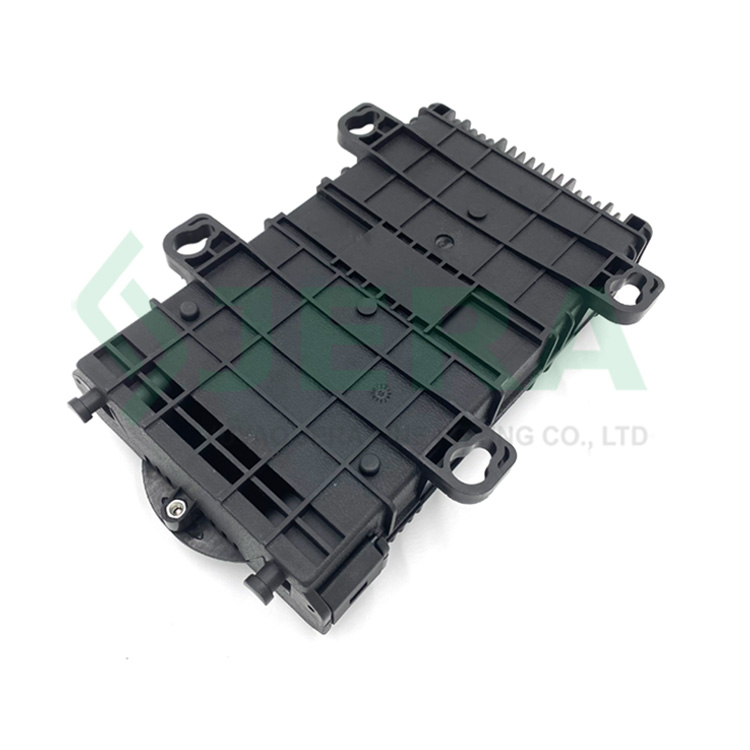

- Screw or stainless steel installation on wall or pole
- Weather resistant
- Fair price
SPECIFICATION
The cable boxes consist of:
- The box dimensions:
- length: 235 mm
- Width: 161 mm
- Height: 50 mm
- Max fiber splicing capacity: 8(16*)
- Material: ABS
Fiber optic box is a connection device in fiber optic communication, which usually consists of a casing, a base, a plug board, a panel, a protection piece, and a distribution frame. The device is used to provide functions such as fiber optic cable connection, amplifier access, protection and distribution of fiber optic cable ends.
ABS plastic is a terpolymer of three monomers: acrylonitrile (A), butadiene (B) and styrene (S). A makes it resistant to chemical corrosion, heat, and has a certain surface hardness, B makes it have high elasticity and toughness, and S makes it have the processing and molding characteristics of thermoplastics and improve electrical properties.
APPLICATION

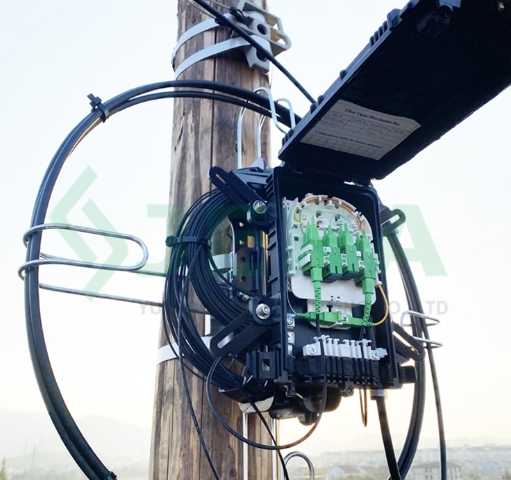

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
FODB-8.5 |
|
Feeding cable dimensions, mm: |
2 of ∅3-12 |
|
Drop cable dimensions, mm: |
8 of ∅2-3 |
|
Max splicing capacity: |
8 (16*) |
|
Adapters, SC type: |
8+2 |
|
PLC splitters , blockless 60x7x4 mm |
1 of 1:8 or 2 of 1:4 |
|
IP protection |
68 |
|
Overall dimensions, mm |
235×161×50 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test

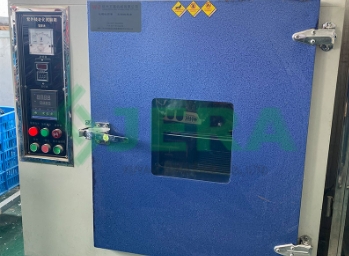

UV & temperature
test
Corrozion aging
test
Fire resistance
test
