Mini SC Hardened Adapter
Mini SC Hardened Adapter
Description:

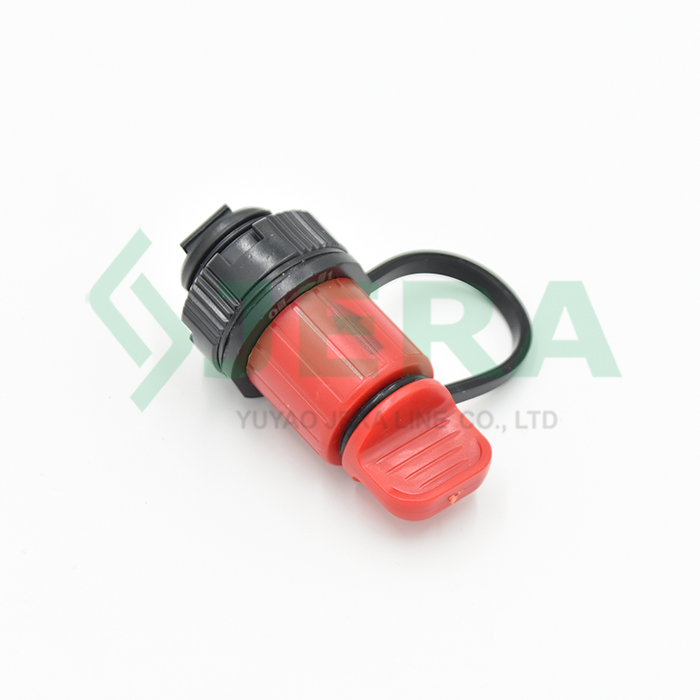

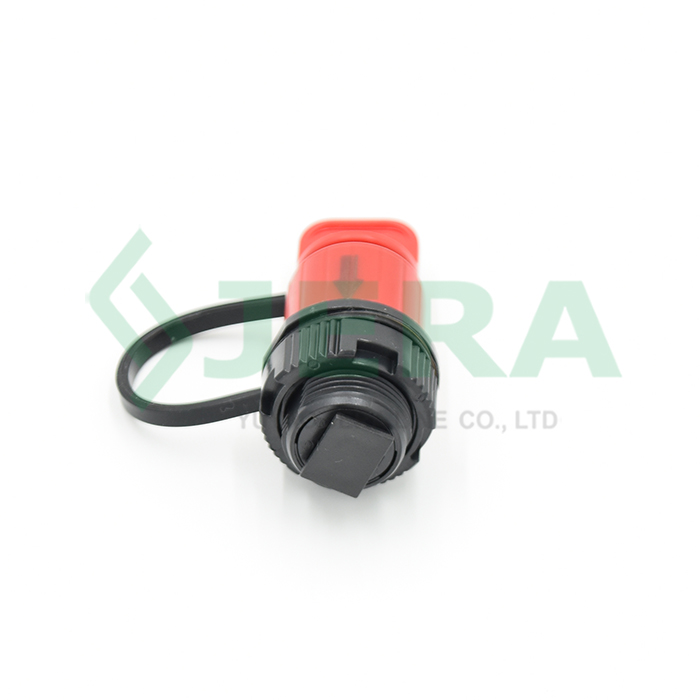

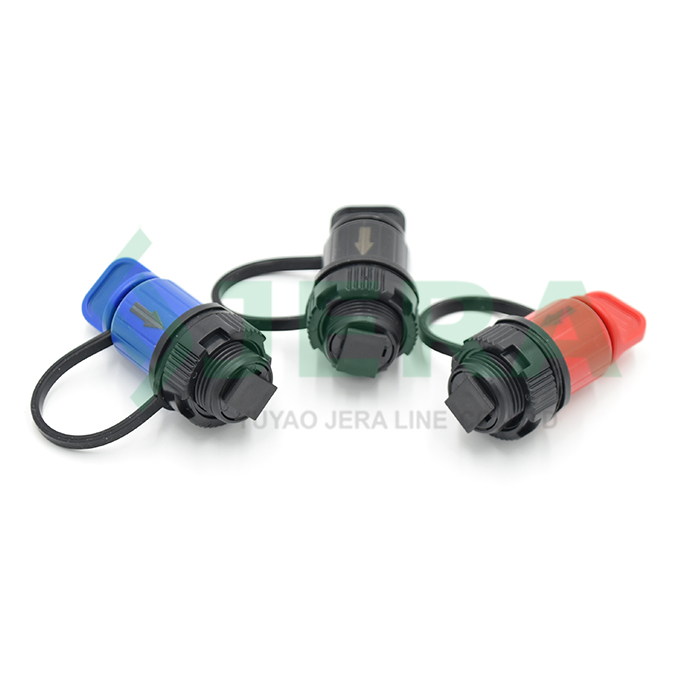

Mini SC Hardened Adapter also called hardened fiber optic connector, is a type of IP68 Outdoor Hardened Adapter that seamlessly integrates with the Huawei Fast connect system. It features convenient environmental sealing and mechanical protection, making it suitable for single-mode SC-style connections. The design of this connector ensures blind insertion functionality, reducing installation time, and it is compatible with fiber access terminal boxes.
- Type: Mini
- Socket type: SC
- Polish type: APC/PC
- Area: Indoor
- Product detail
- Specification
- Video
- Inquiry
Key Features
- IP68 waterproof, salt-mist proof, humidity proof, dust proof.
- Spiral Clamping Mechanism, easy operation, long-lasting connection
- Sealed design, safe and efficient
- Optical signal transmission with low loss, low insertion loss and high return loss
- Factory excellent price
SPECIFICATION

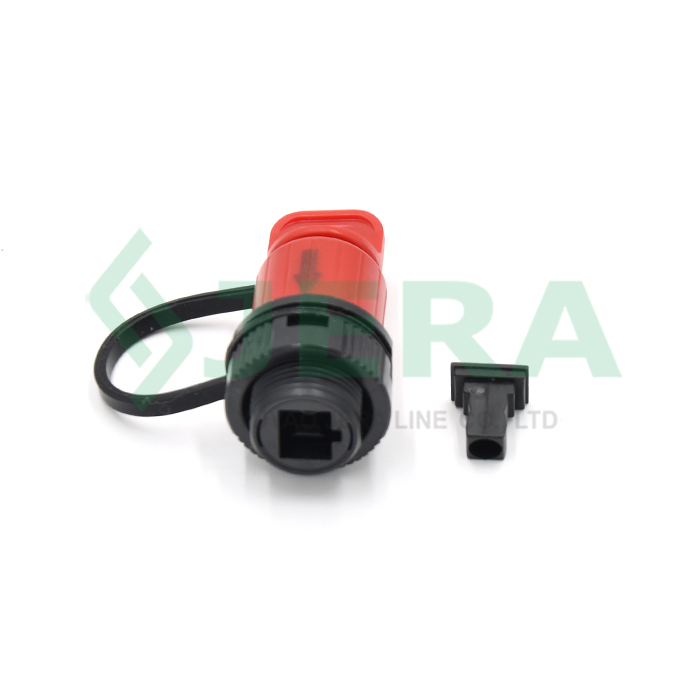

Fiber optic adapter generally consists of three parts:
- Two fiber terminations
- One coupler
Two optical fiber terminations connect the two optical fiber tail ends. The coupler acts as a bushing.
SC (Standard Connector): The standard square joint is made of engineering plastic, which has the advantages of high temperature resistance and not easy to oxidize.
APC: Polished at an 8-degree angle.
PC: Joint section is flat.
The casing is usually made of wear-resistant, dustproof, and waterproof materials. The connection interface is usually made of ceramic. This design protects internal components from the external environment, ensures stable fiber connection and reduces optical signal loss.
Adapters sometimes also include some auxiliary parts, such as sealing rings, locks, etc., to cope with complex environments.
APPLICATION
Applied Outdoor, for inputting of splitter.
Jera Line is the direct factory, located in Ningbo China which produces the Mini SC Hardened Adapter, fiber optical splitter, fiber access terminals for outdoor ODN deployment.
Welcome to find more information about our solutions here:
What is cascade ftth deployment by hardened type connectors?
Manufacturing
Watch Our Factory Video
Technical specification
|
Model NO. |
Mode |
Type |
Connector |

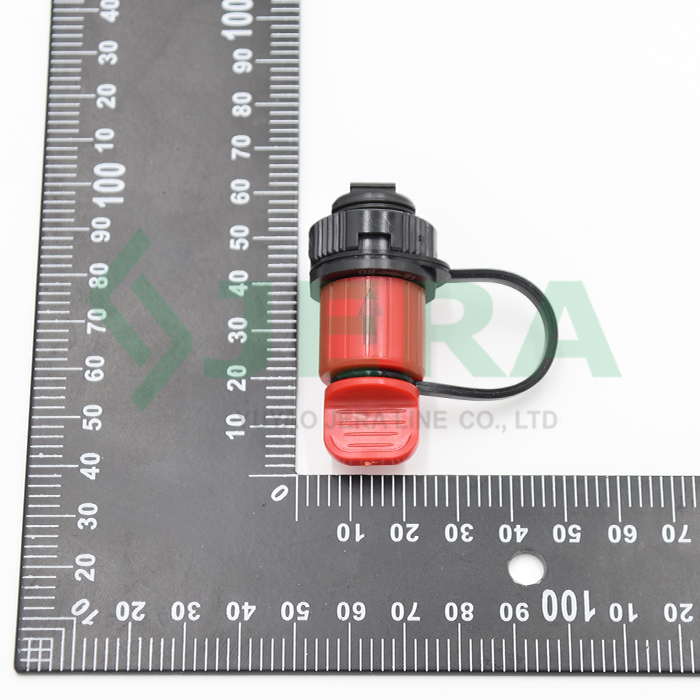

Dimension (mm) |
|
Huawei patch cord connector |
Single Mode |
Mini |
SC/APC or SC/PC |
24.8×24.8×51.6 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
FAQ
-
1. What area are you in?
We are the factory, located in China busy in production of aerial FTTH solution consist of:
- fiber cable,
- pre-terminated patch cords,
- cable clamps and brackets,
- outdoor and indoor termination boxes, access terminals
We produce a solution for optical distribution network ODN.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We offer very competitive price.
- We produce a solution, with suitable product recommendations.
- We have the stable quality control system.
- After sales product guarantee and support.
- Our products were adjusted to work with each other to operate in a system.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust. -
5. Why you can offer competitive prices?
Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/
-
6. Why can you offer stable quality?
Because we have quality system, find more details https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.
-
8. How can I save logistics cost working with you?
You can decrease up to 5% of your logistics cost working with us.
Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com) -
9. What are the main products that you produce?
We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.
-
10. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
11. Can you produce OEM orders?
Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.
-
12. Can you offer me product’s Customization and R & D?
Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
13. What's your MOQ of new customers?
Absence of MOQ criteria for first order.
-
14. Can you provide free samples?
Yes, we provide samples, which will same to the order.
-
15. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
16. Where can I see yours’s products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
17. How to get in touch with you?
-
18. Where can I download your latest catalog
Here you can do it: https://www.jera-fiber.com/about-us/download-catalog-2/
-
19. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
