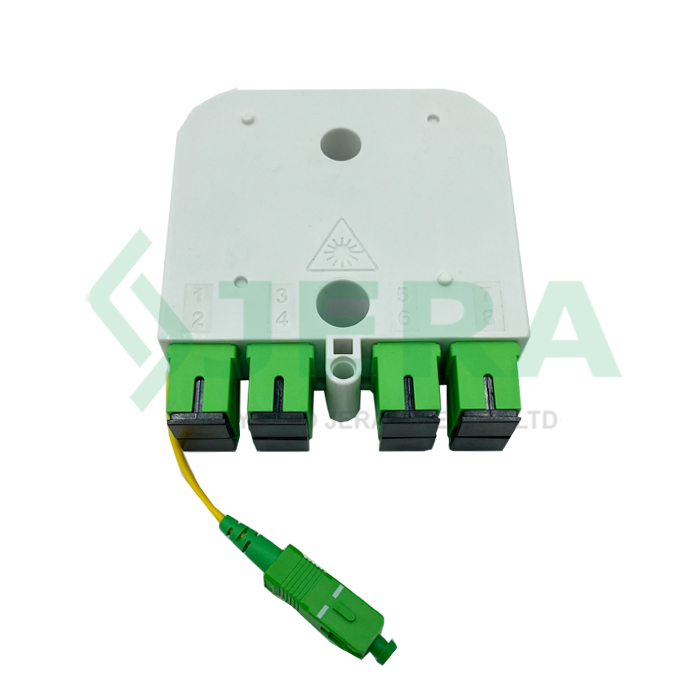

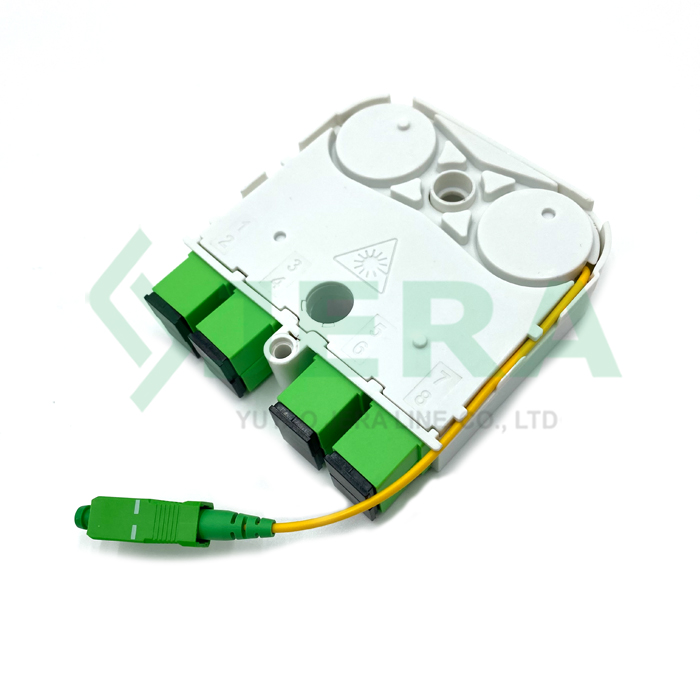

Mini PLC cassette splitter 1×8
Mini PLC cassette splitter 1×8
Description:
Mini PLC cassette splitter 1×8 is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Mini PLC cassette splitter is available with relevant products just like FODB-8 fiber optic termination box from jera product range. PLC splitter has stronger fiber protection than blockless fiber splitter, which is a miniaturization result of cassette splitter. It’s mainly used for various connection and distribution boxes or network cabinets.
- Type: 1 x 8
- Adapter type: SC
- Polish type: APC
- Area: Indoor
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Compact size
- Low insertion loss(IL)
- Low polarization dependent loss (PDL)
- Available with adapters or pigtails with SC/UPC, SC/APC application
- Easy and low cost FTTH installation
- High reliability and stability
- Competitive price
SPECIFICATION
Mini PLC cassette splitter 1×8 is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Mini PLC cassette splitter is available with relevant products just like FODB-8 fiber optic termination box from jera product range. PLC splitter has stronger fiber protection than blockless fiber splitter, which is a miniaturization result of cassette splitter. It’s mainly used for various connection and distribution boxes or network cabinets.
Jera cassette PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. This Mini PLC splitter we offer are: 1×4, 1×8.
APPLICATION
The package of this mini PLC splitter is simple carton box. The pallet packing method is available as well, check more details with our sales.
Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.
We supply fiber optical cable accessories for FTTH constructions and provide the whole kit of accessories to our customers, such as fiber optic cable, cable clamps, cable bracket, fiber optic termination boxes, adapters, patch cord and so on.
Welcome to contact us for further details.
Manufacturing
Watch Our Factory Video
Technical specification
|
Type |
1×8 |
|
|
Operating wavelength (nm) |
1260-1650 |
|
|
Cassette splitter dimensions, mm |
89*82*22 |
|
|
Splitter cassette material |
ABS |
|
|
Optical fiber type |
G657A1,G657A2 |
|
|
Insertion loss(dB) |
Typical |
10.5 |
|
Maximum |
10.7 |
|
|
Uniformity(dB) |
Typical |
0.6 |
|
Maximum |
0.8 |
|
|
Polarization Dependent Loss(dB) |
Typical |
0.15 |
|
Maximum |
0.25 |
|
|
Wavelength dependent Loss(dB) |
Typical |
0.15 |
|
Maximum |
0.3 |
|
|
Return loss(dB) |
Maximum |
55/50 |
|
Directivity(dB) |
Maximum |
55 |
|
Operating temperature ℃ |
-20 to 85 |
|
|
Storage temperature ℃ |
-40 to 85 |
|
|
Optical fiber length (m) |
0.5 |
|
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
