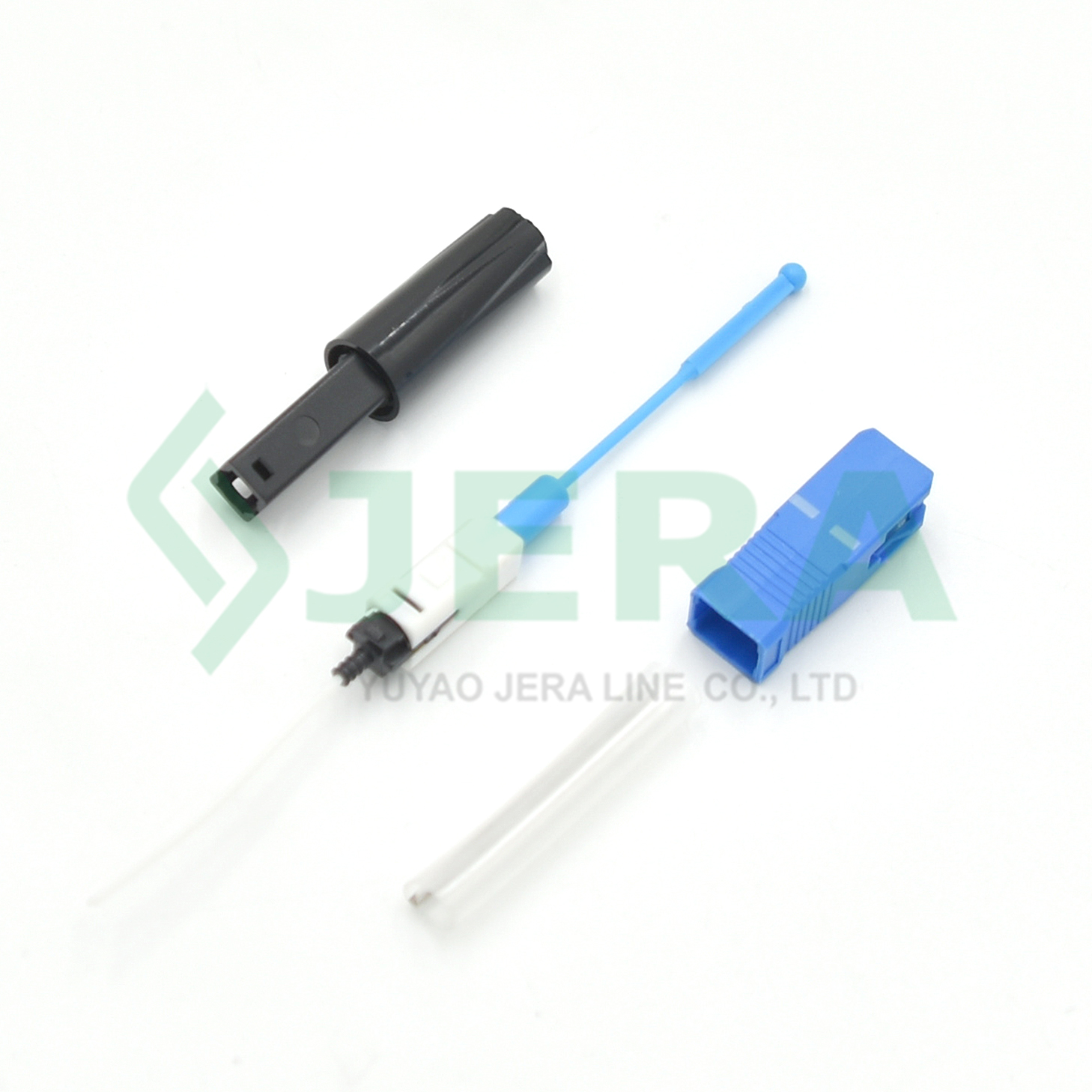

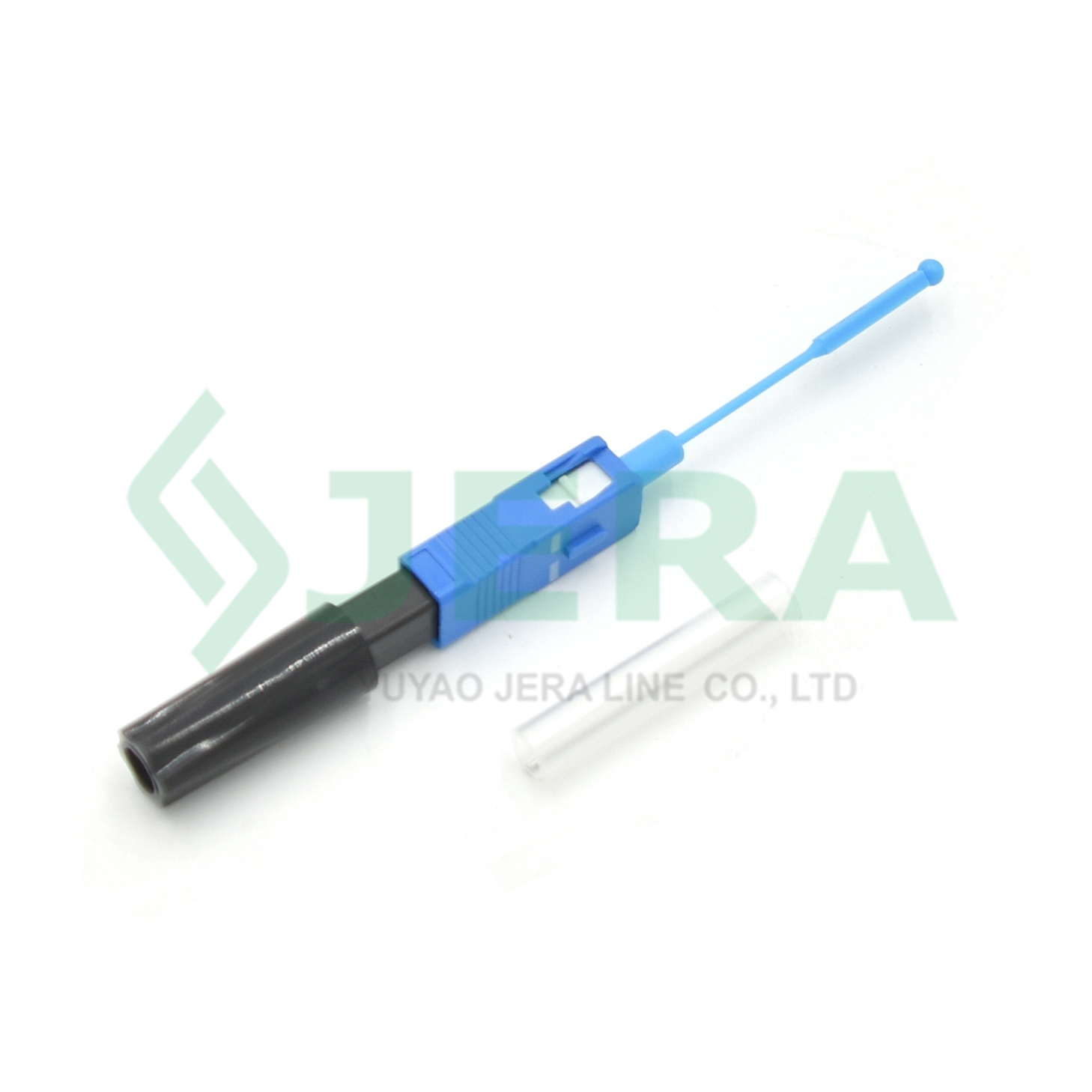

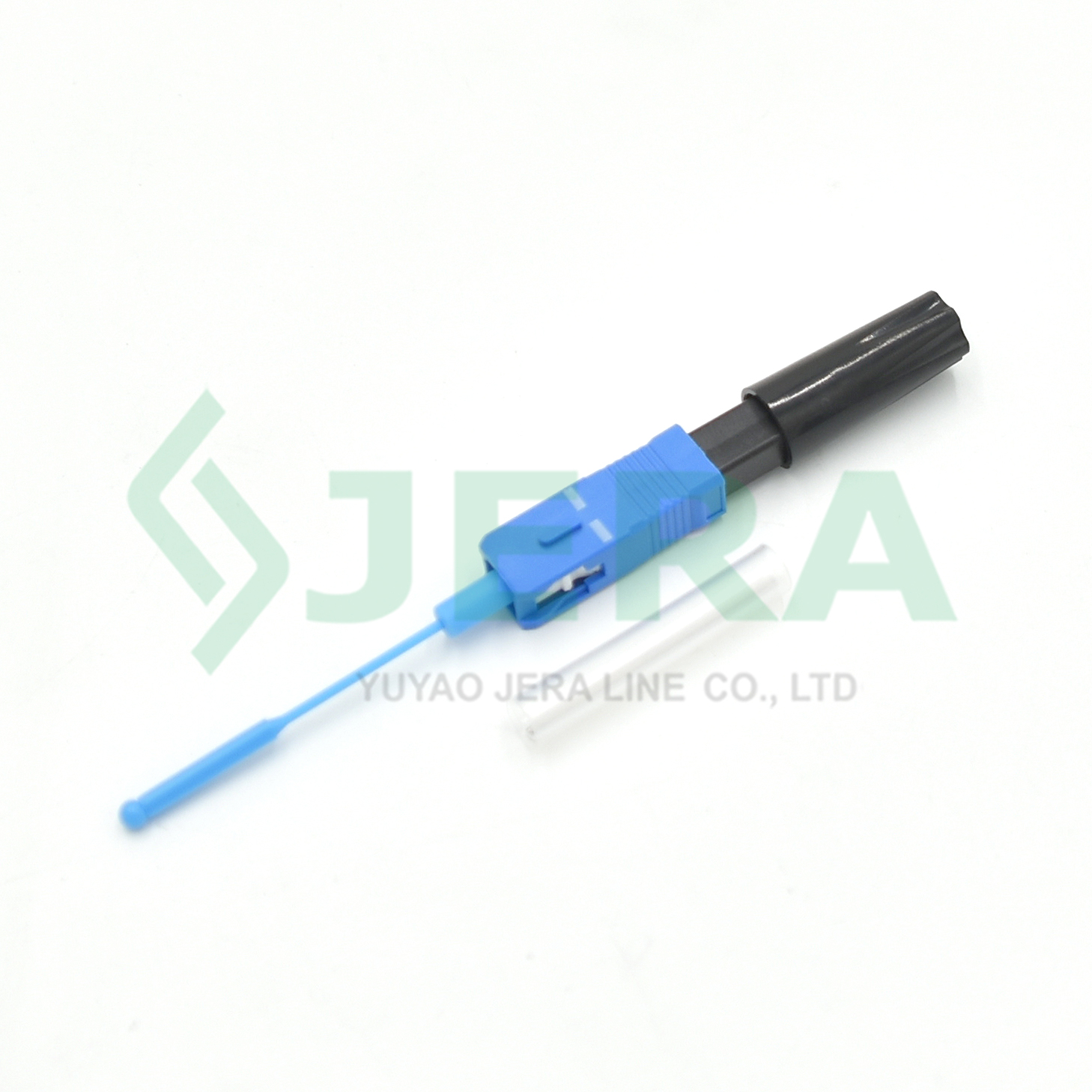

Hot melt connector SC-UPC Type 58

Hot melt connector SC-UPC Type 58
Hot melt connector SC-UPC Type 58
Hot melt connector SC-UPC Type 58
Hot melt connector SC-UPC Type 58
Hot melt connector SC-UPC Type 58
Hot melt connector SC-UPC Type 58
Hot melt connector SC-UPC Type 58
Hot melt connector SC-UPC Type 58
Model No. :

Hot melt connector SC-UPC Type 58

Description:

Hot Melt Connectors are high-performing, easy-to-install fiber optic connectors specifically designed for both single-mode and multimode fiber data transport systems.

    • Type : Single mode
    • Socket type : SC
    • Polish type : UPC
    • Area : Outdoor/Indoor
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key features

  • Precision mechanical alignment ensures low insertion loss
  • High success rate of connection
  • Superior optical performance
  • Simple assembly process, convenient operation.
  • No epoxy and polishing required, reducing installation time.
  • Stable optical performance is achieved through its use of V-groove mechanical splice technolog
Hot melt connector SC-UPC Type 58 Hot melt connector SC-UPC Type 58

SPECIFICATION

These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.

read more

APPLICATION

  • Fiber optic equipment
  • Fiber optic communication system
  • FTTH optic fiber terminal connection
  • Optical access network
  • Fiber optic data transmission
  • CATV
  • Central office connector replacement
  • Data center installation
read more

OPERATION STEPS

Operation Steps

Note: The following steps,must ensure that the cleaning of the product and fiber.

1. insert optical cable into heat shrink tubing connector housing and screw cap.

2. Strip cable jacket by peel line opener.

3. Cut the fiber by cleaver.

4. Assemble fiber optic connector,do not remove the dust cap.

5. Strip the fiber from connector root by miller pliers.

6. Place the whole connector in the heating fixture of welding meachines.Put in heat shrink tubing.

7. Put housing and finish assambling.

read more

Manufacturing

    fiber web manufacturer

Watch Our Factory Video

Technical specification

Connector Type

SC

Polish

UPC

Radius Of Curvature

7mm~25mm

Apex Offset

Max. 50µm

Fiber Height

-50nm~50nm

Operating temp

-40℃~+70℃

Storage temp

-40℃~+80℃

Dimension

55mm

Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test
