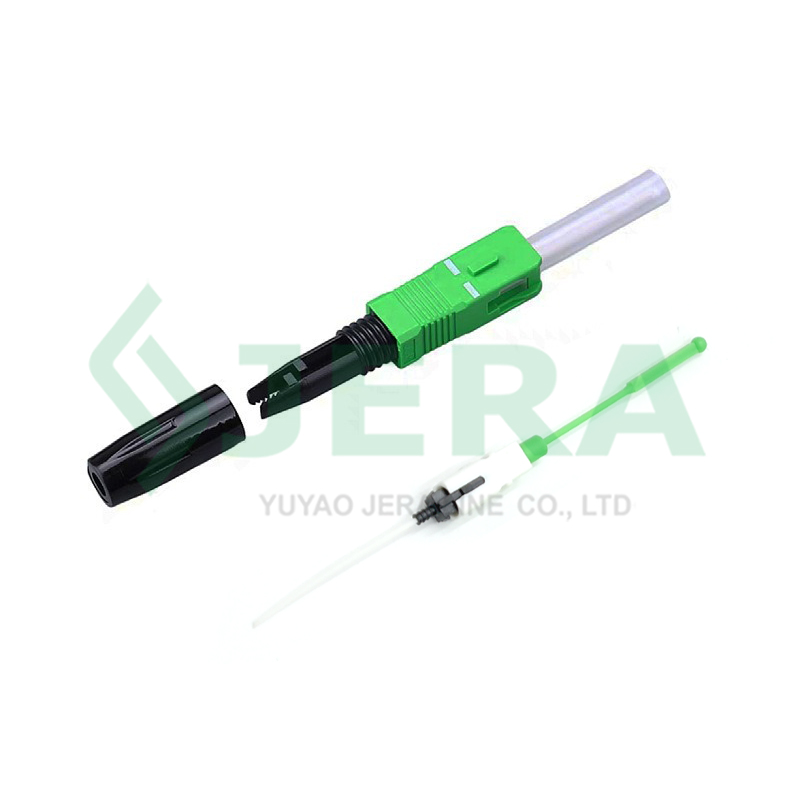

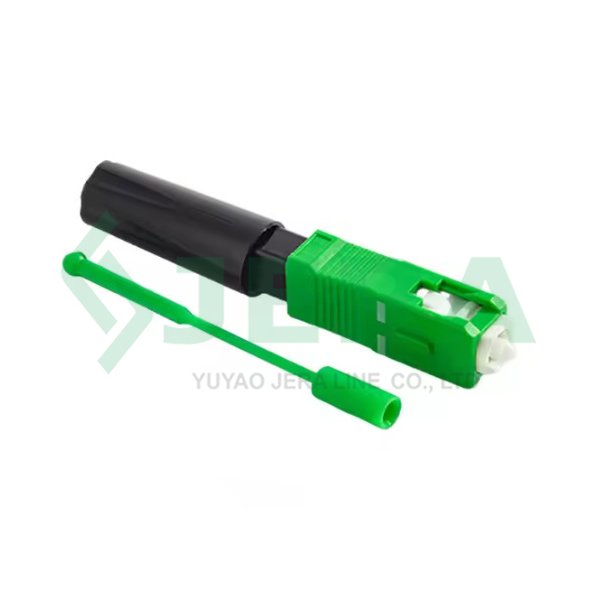

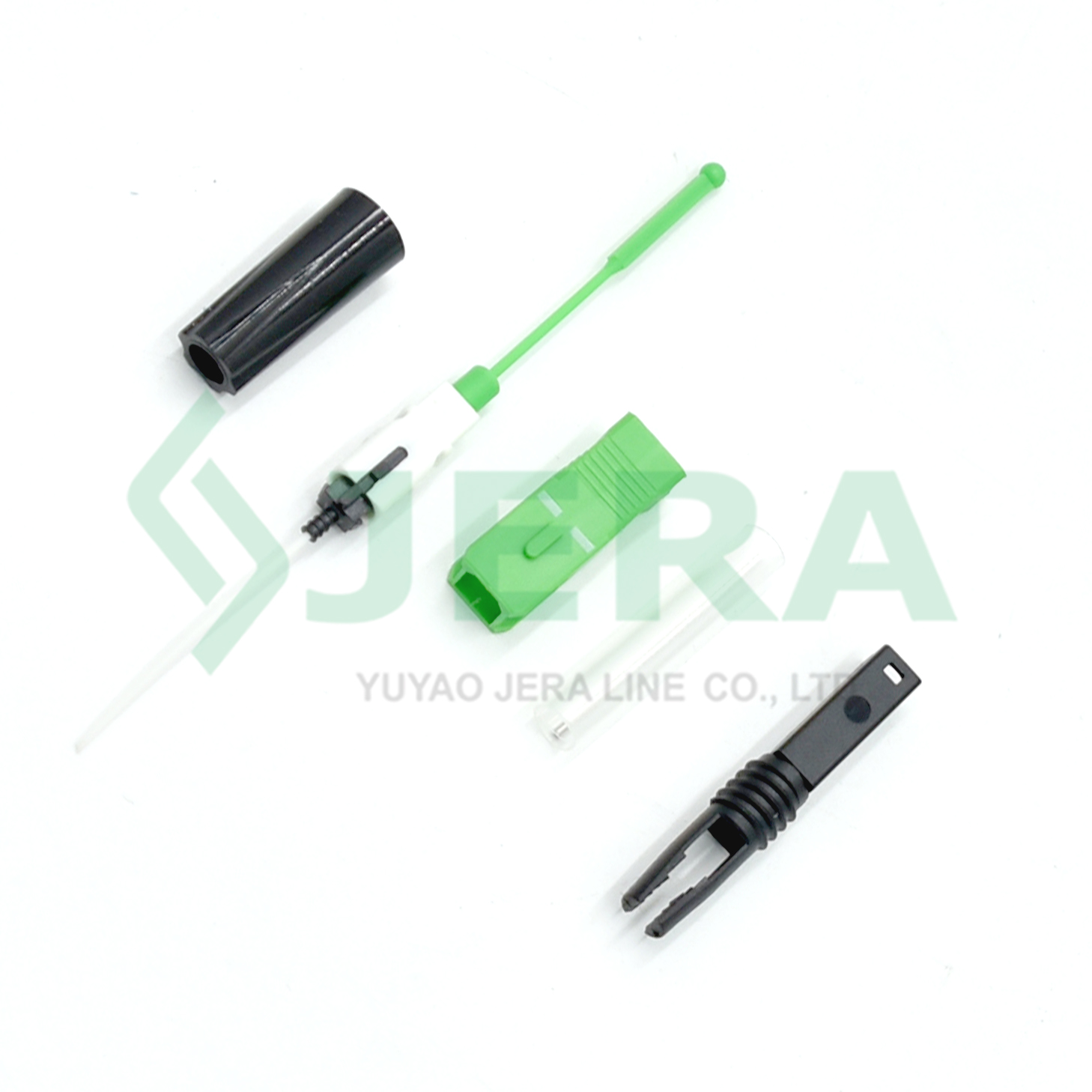

Hot melt connector SC-APC Type 58

Hot melt connector SC-APC Type 58
Hot melt connector SC-APC Type 58
Hot melt connector SC-APC Type 58
Hot melt connector SC-APC Type 58
Hot melt connector SC-APC Type 58
Hot melt connector SC-APC Type 58
Hot melt connector SC-APC Type 58
Hot melt connector SC-APC Type 58
Model No. :

Hot melt connector SC-APC Type 58

Description:

Hot Melt Connectors are high-performing, easy-to-install fiber optic connectors specifically designed for both single-mode and multimode fiber data transport systems.

    • Type : Single mode
    • Socket type : SC
    • Polish type : APC
    • Area : Outdoor/Indoor
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key features

  • Quick termination (less than 2 minutes) with high yield.
  • Custom length cable assemblies can be built on-site.
  • Re-heatable adhesive allows fiber repositioning.
  • No epoxy mixing or mess.
  • Reliable performance in high-speed transmission.
Hot melt connector SC-APC Type 58 Hot melt connector SC-APC Type 58

SPECIFICATION

Reliability: Hot melt connector SC are popular among contractors due to their reliability and ease of use. They come pre-loaded with an adhesive that has an unlimited shelf life.

Termination Process: The termination procedure allows for reheat and repositioning of the fiber during installation.

Standards: Hot Melt Connectors meet TIA/EIA 568-C.3 standards for indoor and outdoor applications.

read more

APPLICATION

Indoor and Outdoor: Hot Melt Connectors provide reliable performance in a wide range of indoor and outdoor applications.

Backbones and Networks: They are suitable for building and campus Local Area Network (LAN) backbones, factory and industrial control systems, traffic control systems, and enterprise networks.

Multifiber Distribution: Hot Melt Connectors are ideal for termination of multifiber distribution and breakout cables.

read more

Manufacturing

    fiber web manufacturer

Watch Our Factory Video

Technical specification

Connector Type

SC

Polish

APC

Insertion Loss

≤0.35dB

Return Loss

≥50dB

Cable Diameters(mm)

0.9/2.0/3.0

Dimension(mm)

50

Ferrule

Ceramic

Fiber Mode

9/125μm Single mode

Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test

FAQ

  • 1. What area are you in?

    We are the factory, located in China busy in production of aerial FTTH solution consist of:

    • fiber cable,
    • pre-terminated patch cords,
    • cable clamps and brackets,
    • outdoor and indoor termination boxes, access terminals

    We produce a solution for optical distribution network ODN.



  • 2. Are you the direct manufacturer?

    Yes, we are direct factory with years of experience.

  • 3. Where is your factory located?

    Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.

  • 4. Why I should choose Jera Line?

    - We offer very competitive price.
    - We produce a solution, with suitable product recommendations.
    - We have the stable quality control system.
    - After sales product guarantee and support.
    - Our products were adjusted to work with each other to operate in a system.
    - You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
    - We are committed to long term refashions based on trust.

  • 5. Why you can offer competitive prices?

    Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/

  • 6. Why can you offer stable quality?

    Because we have quality system, find more details  https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/

  • 7. Do you offer a guarantee on your products?

    Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.

  • 8. How can I save logistics cost working with you?

    You can decrease up to 5% of your logistics cost working with us.
    Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com)

  • 9. What are the main products that you produce?

    We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.

  • 10. What's your trade term and payment terms?

    We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.

  • 11. Can you produce OEM orders?

    Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.

  • 12. Can you offer me product’s Customization and R & D?

    Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.

  • 13. What's your MOQ of new customers?

    Absence of MOQ criteria for first order.

  • 14. Can you provide free samples?

    Yes, we provide samples, which will same to the order.

  • 15. Will the quality of ordered products be the same to the sample what I have confirmed?

    Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.

  • 16. Where can I see yours’s products application?

    Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t

  • 17. How to get in touch with you?

  • 18. Where can I download your latest catalog

  • 19. Do you have global experience?

    Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
