Hardened SC/APC patch cord
Hardened SC/APC patch cord
Description:

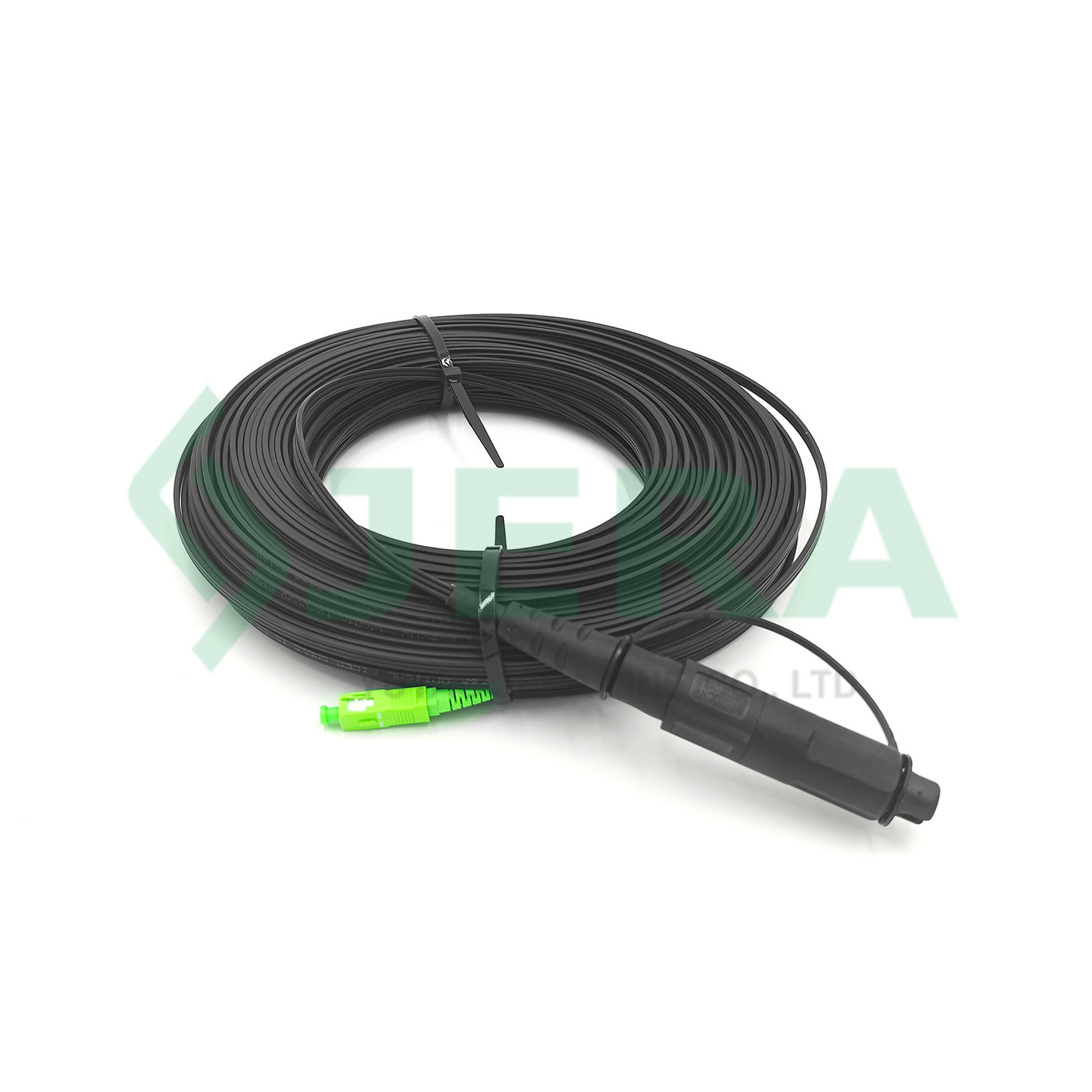

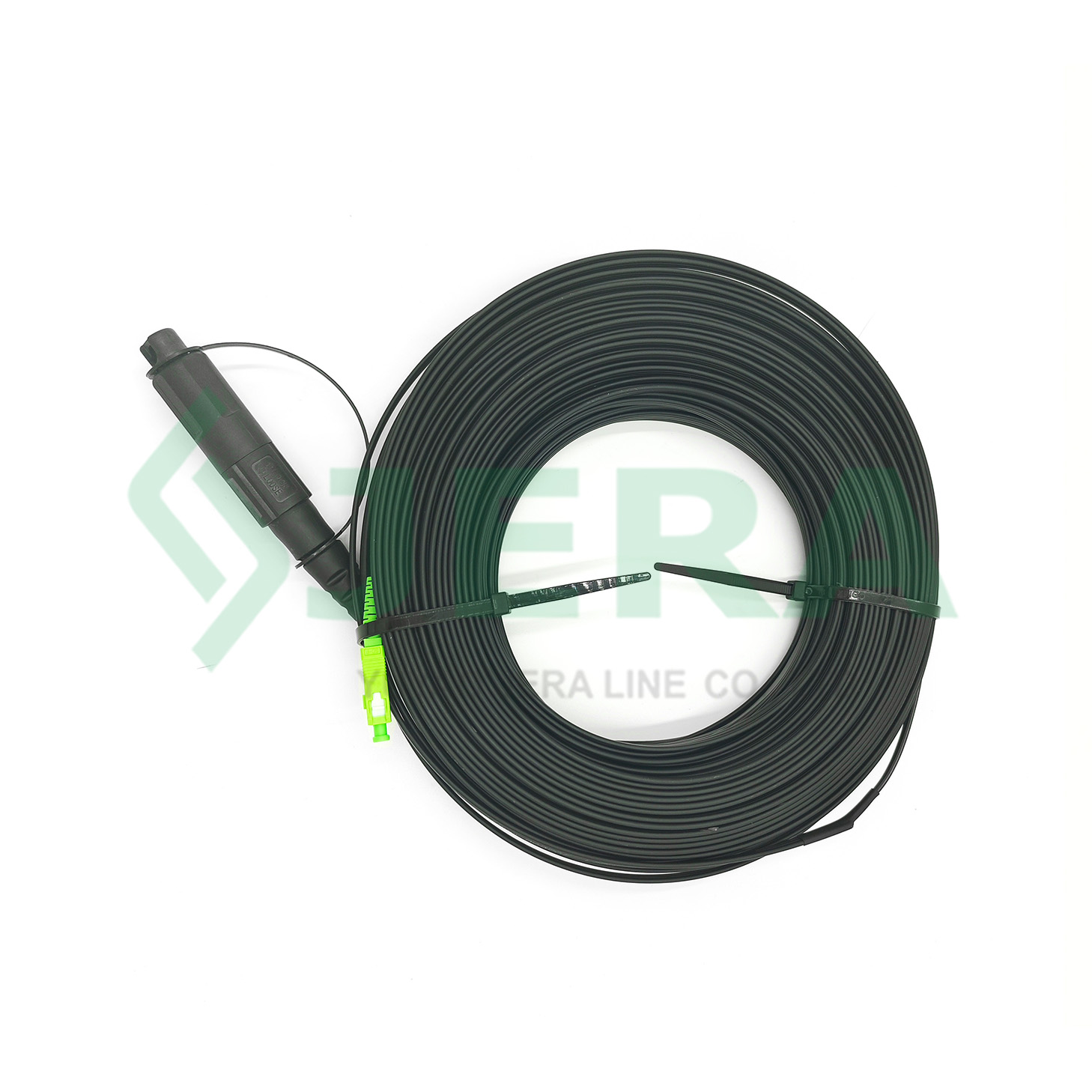

Hardened SC/APC patch cord either called Hardened Fiber Optical patch cord，is a patch cord for outdoor optical fiber communication. Its unique connection design enables close connection between optical fibers and meets the highest level of waterproof and dustproof specifications (IP68). Thanks to these features, Fiber OptiTap SC APC Hardened patch cord is able to be installed and used outdoors and in harsh environments.
- Application: Outdoor
- Fiber quantity: 1 fiber
- Dimensions: 2.0*5.0 mm
- Waterproof: IP68
- Product detail
- Specification
- Video
- Inquiry
Key Features
- The highest level of waterproof and dustproof specification IP68
- Easy to plug and unplug
- Durable, high temperature resistant, acid and alkali resistant
- Easy installation, save time
- Factory direct sales, quality assurance
SPECIFICATION
The cable patch cords consists of:
- The cable dimensions:
- Width : 5.0 ± 0.2mm
- Height: 2.0±0.2mm
- Fiber quantity is 1 fiber.
- LSZH jacket sheath, UV protected.
Optical fiber of Single mode G657A1 / G657A2 grades of fiber standards.
LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.
APPLICATION
Applied in harsh outdoor environment, outdoor communication equipment connection, waterproof optical fiber equipment.
Manufacturing
Watch Our Factory Video

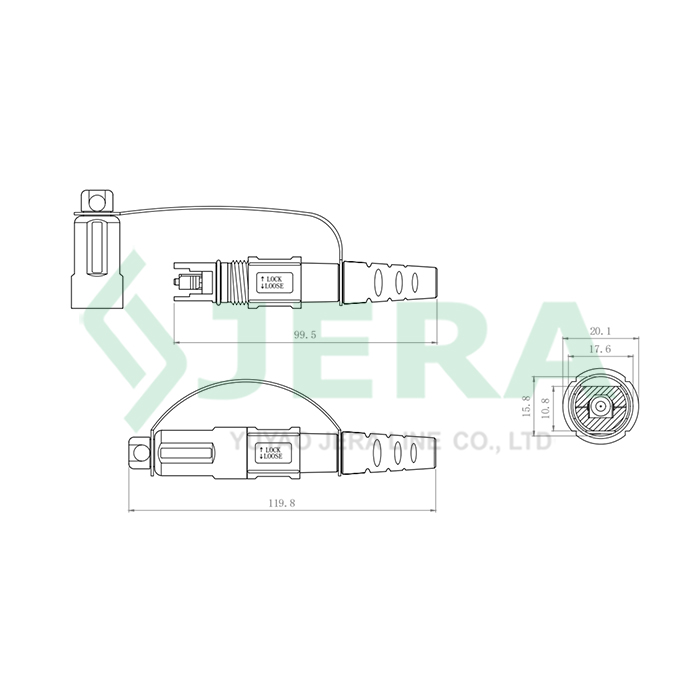

Technical specification
|
Model NO. |
OptiTap |
|
Application |
Outdoor |
|
Type |
Single-mode Fiber |
|
Connection Structure |
SC |
|
Allowed Lateral Pressure |
100(N/100mm)<1000(N/100mm) |
|
Allowed Tensile Strength |
1000N<10000N |
|
Sheath Material |
LSZH |
|
Cable Diameter, mm |
(2.0±0.2)x(5.0±0.2) |
|
Waterproof Grade |
IP68 |
RELATED PRODUCTS
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
