Ftth rack mount fiber optic distribution frame, 1U-12-SC
1U-12-SC
Description:
Ftth rack mount fiber optic distribution frame, other called fiber optical patch panel is designed to distribute, manage and protect fiber cores during telecommunication networks, in CATV equipment rooms or network equipment room. This ODF can accommodate up to 12 of fiber core connections base on SC/APC, LC/Duplex, SC/UPC type patch cords or adapters.
- Application: Unit quantity: 1U
- Max splicing capacity: 12 fibers
- Adapter type: 12 SC
- Width: 19 inches
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Splice tray inside changeable
- Standard size, light weight and robust structure
- Various panel plate to fit different adapter interface
- Accommodate 12 fiber cores connections
- Cold-rolled steel plate by electrostatic spraying
- Very easy and convenient to manage and operate
- Excellent environmental stability
- Competitive price
SPECIFICATION
The cable boxes consists of:
- The box dimensions:
- length: 490 mm
- Width: 340 mm
- Height: 45 mm
- Max fiber splicing capacity: 12
- Material: ABS
Fiber optic box is a connection device in fiber optic communication, which usually consists of a casing, a base, a plug board, a panel, a protection piece, and a distribution frame. The device is used to provide functions such as fiber optic cable connection, amplifier access, protection and distribution of fiber optic cable ends.
ABS plastic is a terpolymer of three monomers: acrylonitrile (A), butadiene (B) and styrene (S). A makes it resistant to chemical corrosion, heat, and has a certain surface hardness, B makes it have high elasticity and toughness, and S makes it have the processing and molding characteristics of thermoplastics and improve electrical properties.
APPLICATION

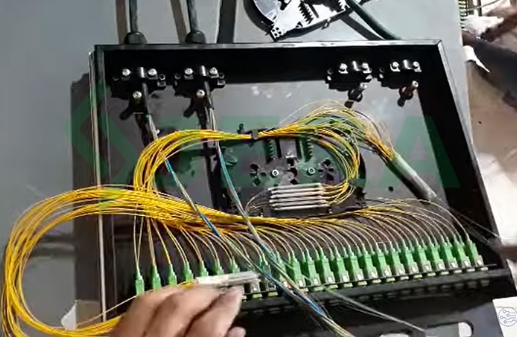

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
1U-12-SC |
| Splice tray capacity |
12 fibers |
| Inputs cable diameters |
4, diameter 12-17mm |
| Dimensions, mm |
490*340*45 |
| Adaptor |
12 SC |
| Separate adapter placates |
Yes |
| Application |
Indoor, last mile connection |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
