FTTH pole bracket, PS-1500
PS-1500
Description:

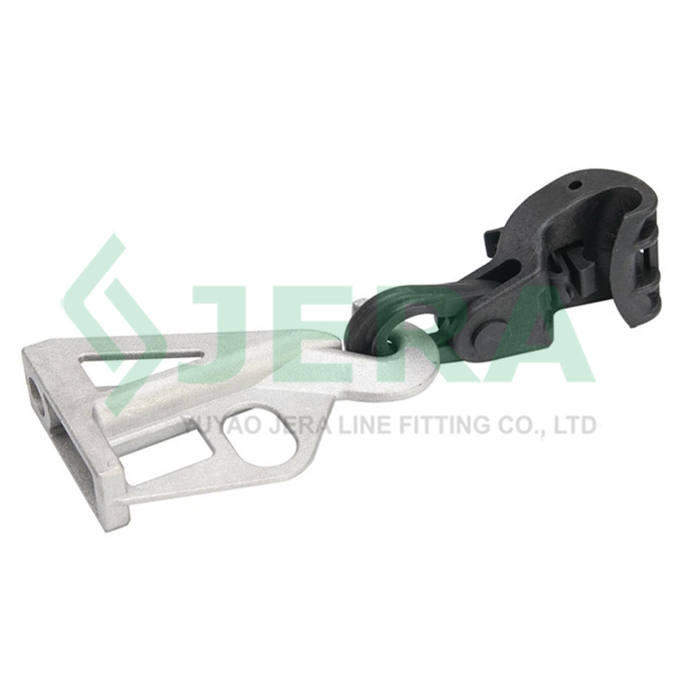

FTTH pole bracket PS-1500, other called anchor bracket designed for tension and suspend adss anchor clamps or preformed guy grips in ftth deployment of outdoor telecommunication networks.
- Bracket type: Tension
- Application: Pole
- Span: 70-200 meters
- MBL: 8 KN
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Easy installation
- Stable product design, durable
- Full aluminum alloy material, rust-proof
- Light weight but with superior mechanical strength
- Applied with stainless steel band and pole bolts
- Fair price
SPECIFICATION
FTTH pole bracket PS-1500, other called anchor bracket designed for tension and suspend adss anchor clamps or preformed guy grips in ftth deployment of outdoor telecommunication networks.
This aerial pole bracket is consist of high strength aluminum alloy, processed with hot die casting technology which can be realized in jera workshop.
This suspension bracket is a compact product, but it has superior physical tensile strength and it allow to be applied with adss tension clamps or dead end guy grips during aerial ftth line construction. The installation of this pole bracket is very simple, it can be attached on wooden or concrete poles with a pole bolt (14/16 diameter) or two stainless steel band ( 20mm width).
APPLICATION
Jera line is a direct ftth pole bracket factory, operating with ISO9001:2015 standards, and we do inspecting tests in jera internal laboratory, tests including max tensile strength test, corrosion resistant test and etc, through these tests which make us be more confident in our products and guarantee the quality for our clients.
Jera line is a direct factory that supply a wide range products for aerial fiber optic cable deployments, we provide not only single product but also a set of solution for our clients. We hope to satisfy our customer requirements with convenient design of products, competitive price, confident quality and flexible OEM and Rnd service.
Feel free to send inquiry for more details about this ftth pole bracket price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
MBL,KN |
Material |
Weight, KG |
|
PS-1500 |
8 |
Aluminum alloy |
0.18 |
Product Video
