Figure 8 drop with steel wire 2 fiber
Figure 8 drop with steel wire 2 fiber
Description:
Figure 8 drop with steel wire 2 fiber also called Self supporting fiber optical drop cable. Compared to FTTH drop cables, FTTH figure 8 drop cables are economical, low factor, self-supporting cables best suited for indoor/outdoor applications and ideal for long distance external use. The flat design allows for easy removal without tools, simplifying the installation process.
- Application: Outdoor
- Fiber quantity: 2 fiber
- Dimensions: 3.5*6.6 mm
- Reinforcement: Steel wire
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Composed of optical fiber, Aramid yarn and steel wire
- Install fiber optic cables without tools
- Easy access to fiber core, high connection availability
- Fire redundant protection
- LZSH material, high safety level
- High mechanical strength suitable for outdoor use
- UV radiation protection
- Competitive price
SPECIFICATION

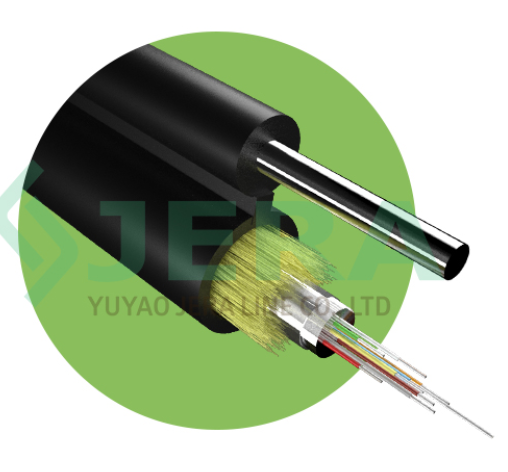

The figure 8 drop cable consists of:
The cable dimensions:
- Width : 3.5±0.1mm
- Height: 6.6±0.1mm
Fiber quantity is 2 fiber.
One of 1.2 mm diameter and seven of 0.33 mm diameter steel strength member/rod.
LSZH jacket sheath, UV protected.
Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.
The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.
The Steel rods maybe produced of 0.33 mm diameter up to customer request. Strength members maybe extra protected by galvanization treatment.
LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.
APPLICATION

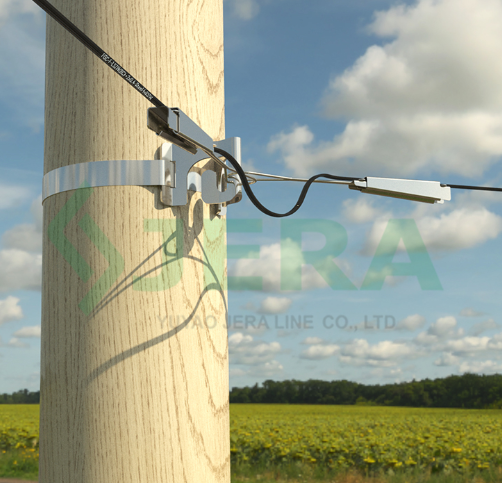

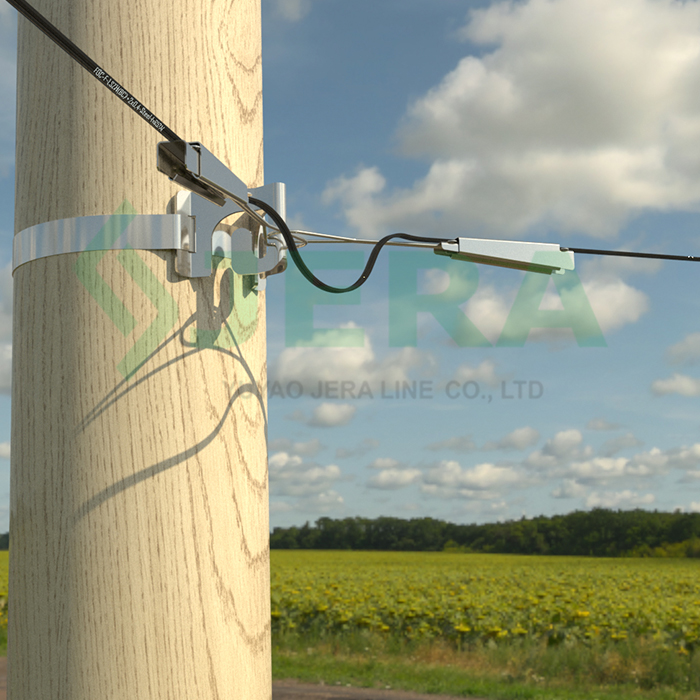

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.
Steel wire strand self-supporting drop cable is an affordable, small, self-contained fiber optic cable that is more suitable for external use over longer distances than FTTH Drop Cable. Jera Line is a Chinese factory specializing in the production of optical cables and can provide accessories such as optical cables. clamp and steel strips.
Manufacturing
Watch Our Factory Video
Technical specification
|
Messenger type |
Glvanized steel wire/steel wire strand |
|
Messenger diameter(mm) |
1.2/0.33*7 |
|
Jacket’s material |
LSZH/TPU |
|
Reinforcement material |
Aramid yarn |
|
Loose tube material |
PBT |
|
Loose tube diameter(mm) |
1.2(±0.02)mm |
|
Fiber type |
G.657.A1/A2 or G.652.D |
|
Cable dimension(mm) |
3.5*6.6(±0.1) |
|
Tensile strength(N) |
1000 |
PRODUCT VIDEO
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY

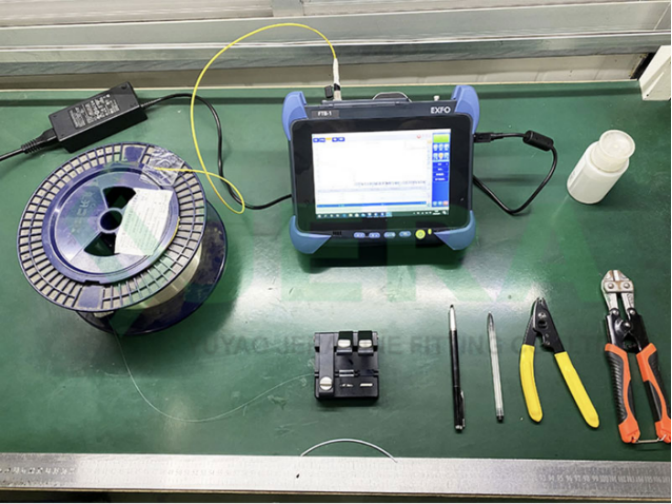

Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
