Fiber optic termination box installation bracket YK-SX, with drop cable slack storage
YK-SX
Description:
Fiber optic termination boxes installation bracket YK-SX is a combination of fiber box bracket and drop cable slack storage. Developed to provide a terminal vertex to fix fiber optic distribution box and a space to storage over-lengths of fiber drop cable.
This Fiber optical terminal box bracket provides a efficient way for end users to terminate feeding optical cable and connect the last mile cables during FTTH line constructions.
- Application: Pole
- Loop diameter:200-450 mm
- Adjustable: Yes
- Materials: UV resistant plastic
- Product detail
- Specification
- Video
- Inquiry
Key features
- Compact design, easy and quick installation
- Universal for 90% of termination boxes in the market.
- Extended cable storing compartment
- Adjustable cable storing compartment 200-450mm
- Allows for storing up to 100 meters of fiber drop cable.
- Allows for storing up to 15 meters of ADSS drop cable
- Stainless steel strapping installation or screw bolt installation are available
- UV resistant polymer, GF reinforced and stainless steel hardware
- Maybe equipped by YK-X to manage termination fiber optic box
- Has additional holes for nylon ties fixation
- Fair price
SPECIFICATION
Fiber optic termination boxes installation bracket YK-SX is a combination of fiber box bracket and drop cable slack storage. Developed to provide a terminal vertex to fix fiber optic distribution box and a space to storage over-lengths of fiber drop cable.
This Fiber optical terminal box bracket provides a efficient way for end users to terminate feeding optical cable and connect the last mile cables during FTTH line constructions.

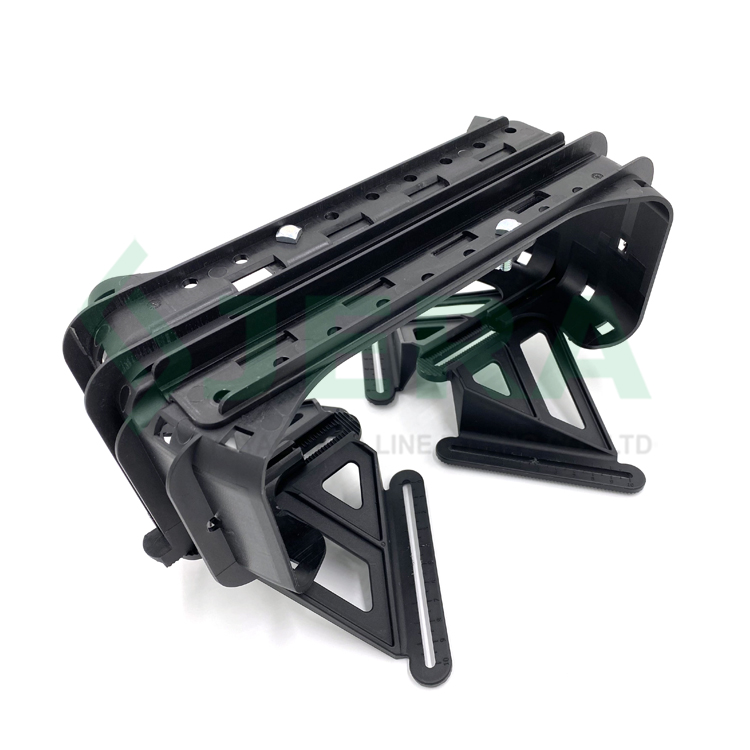

This fiber optic distribution box installation bracket is are made of UV resistant polymer reinforced by fiber glass, and all the hardware are weather proof which guarantee long period usage.
APPLICATION

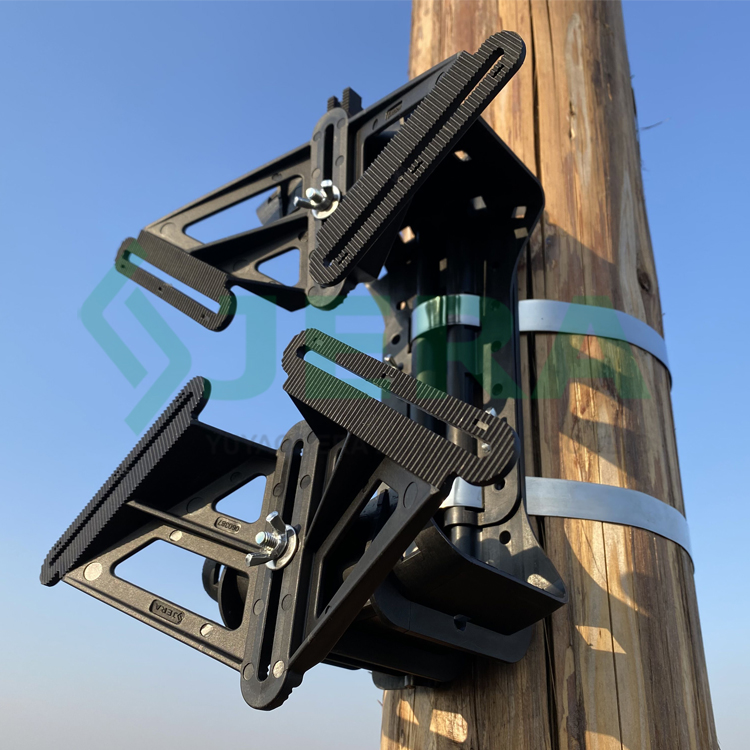

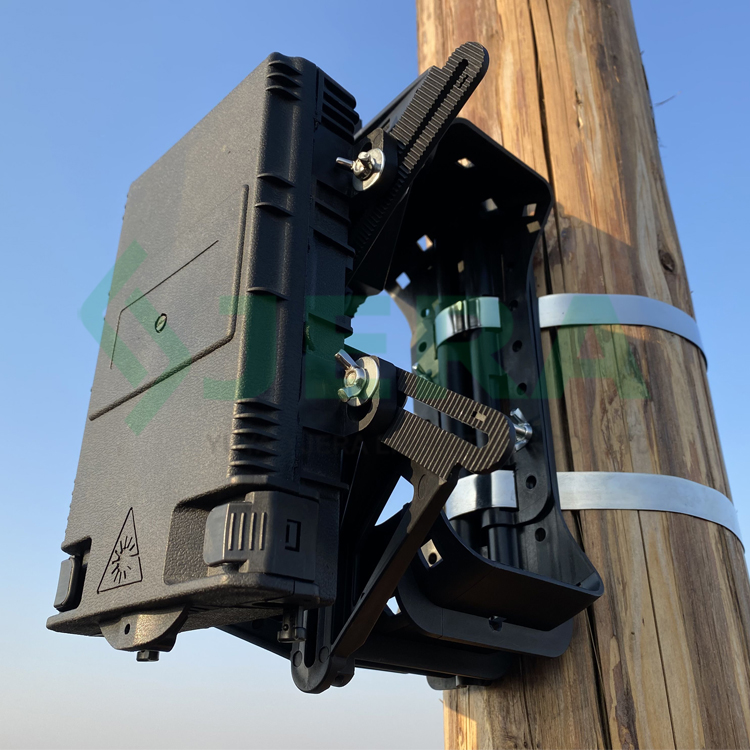

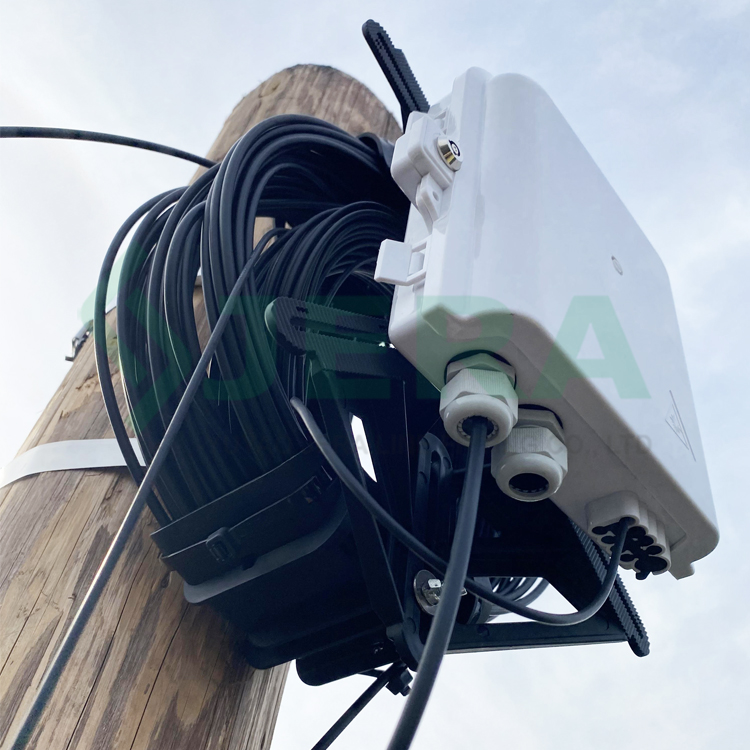

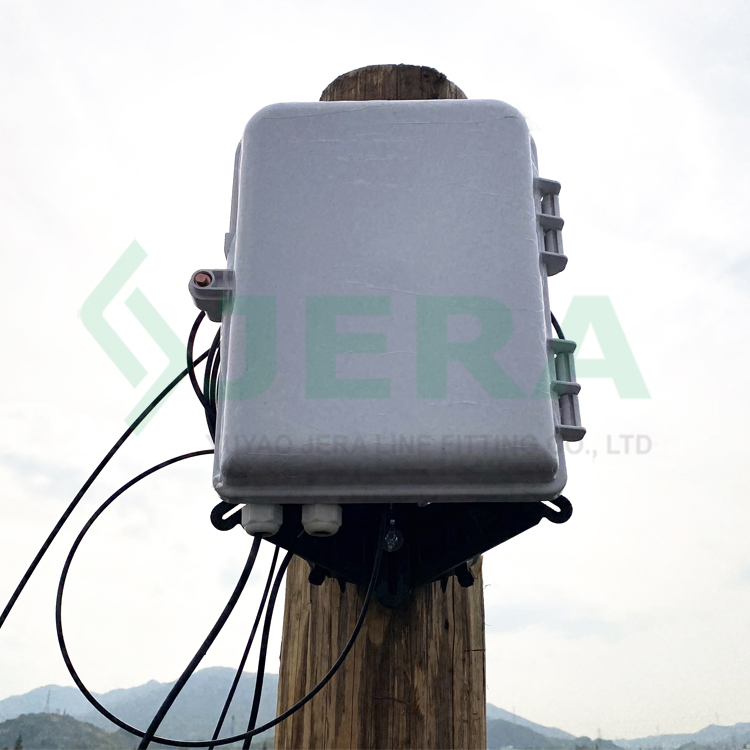

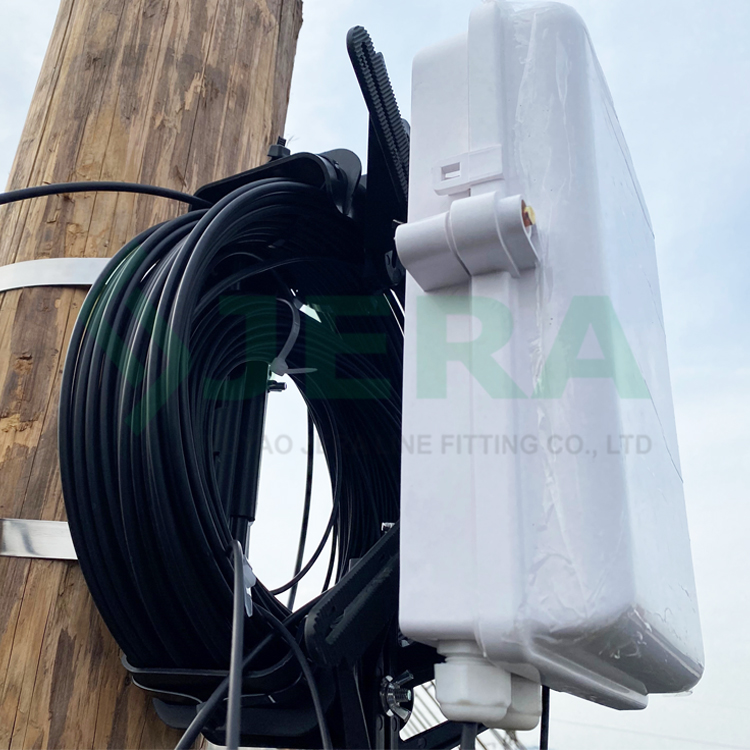

The installation of this bracket for fiber termination box is very simple, only need two stainless steel band to fix this device on pole. The cable coiling storage was designed with adjustable storing compartment of 200 to 450mm, which can be adjust upon cable bending requirements. And the X shaped rack was fixed on cable slack storage by screw and can be adjust to apply with different size of fiber optic distribution box.
Jera Line is operating according to ISO9001:2015, we have an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards.
Jera provide a whole solution for indoor and outdoor FTTH deployment, our product include fiber optic drop cable, fiber optic drop cable patch cord, drop cable clamps, ADSS tension clamp, suspension clamps, dead end guy grips, fiber optic splice closure, stainless steel banding straps and etc.
Welcome to contact us for more information about this Fiber optic termination box installation bracket price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Cable storing coil diameter, mm |
Min-Max size between holes for box, mm |
Bolt size to fix box on bracket |
Materials |
|
YK-SX |
200 to 450 |
66 to 225 |
Φ5mm |
UV resistant polymer, GF reinforced |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
