Fiber optic ADSS cable 24 fibers
FOC-F-HDPE-BC+2x2.0-FRP+2*1.8-PBT
Description:
Fiber optic ADSS cable 24 fibers, either called double loose tube ADSS cable is essential component to transmit light single used in FTTx network line construction.

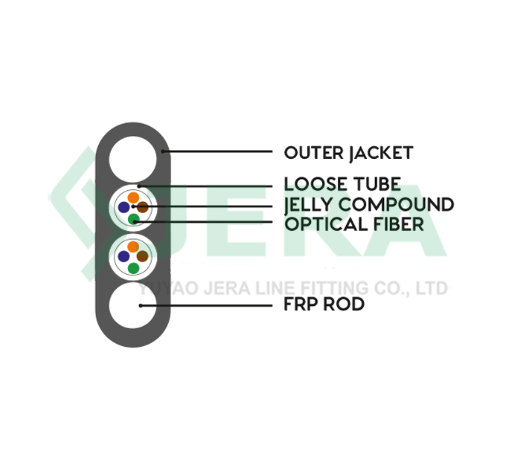

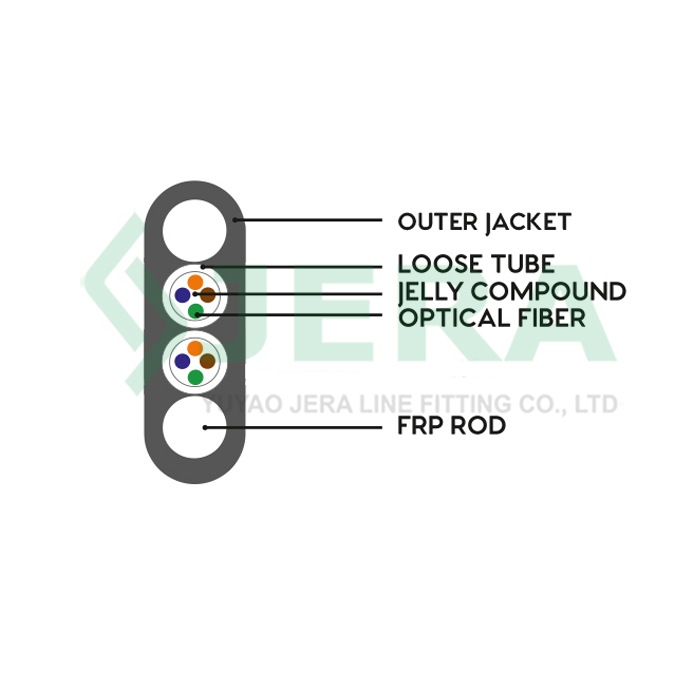

The fiber cores positioned in the two loose tube where full filled with water proof filling compound and the two parallel strength member(FRP) are placed at the two sides to provide high tensile strength.
-
Application: Outdoor
- Fiber quantity: 12 fiber
- Dimensions: 10*4.5 mm
- Reinforcement: FRP
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Self-supporting, double loose tube design
- High connecting usability, easy access to the fiber core
- Reinforced with 2 FRP rods, high tensile strength up to 2200KN
- Full dielectric and high flexibility design
- HDPE cable jacket, UV radiation protection
- Big capacity data transmission
- Gel-filled construction for superior fiber protection
- Conform to IEC 60794-1-2 standard
- Fair price
SPECIFICATION
The cable consists of:
- The cable dimensions:
- Diameter : 10×4.5 （oval）
- Fiber quantity is 24 fiber.
- Two of 2.0 mm diameter steel strength member/rod.
- HDPE jacket sheath, UV protected.
Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.
The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.
The Steel rods maybe produced of 2.2 mm diameter up to customer request. Strength members maybe extra protected by galvanization treatment.
HDPE is a polymer material with high density, high strength and high chemical resistance.
APPLICATION

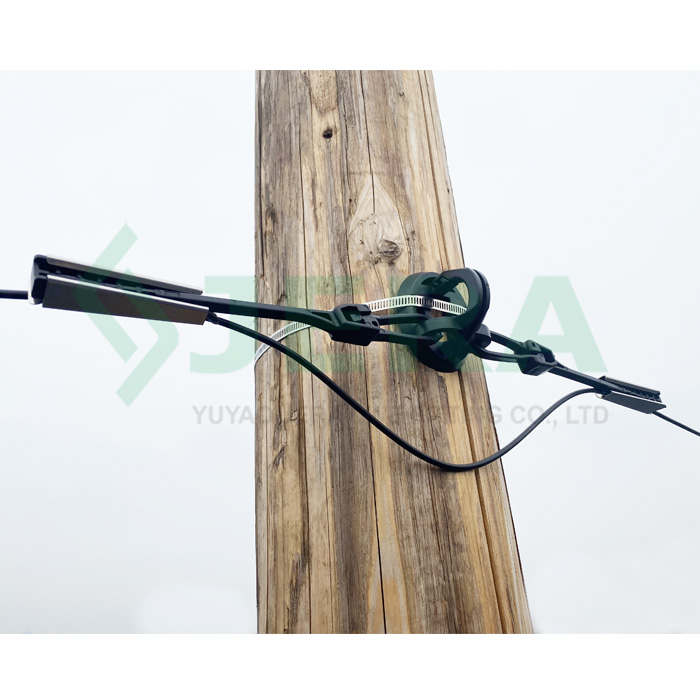

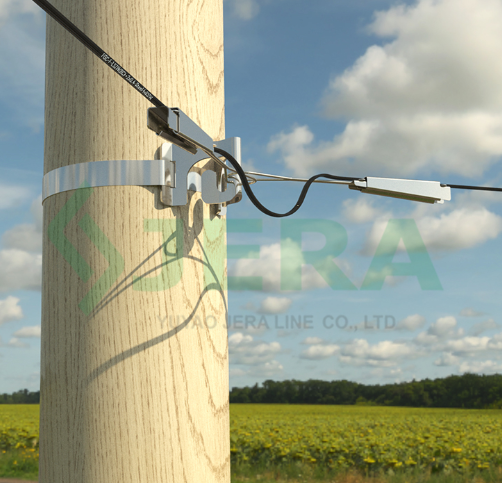

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.
Manufacturing
Watch Our Factory Video
Technical specification
|
Item |
Technology Parameters |
|
Applications |
Outdoor, indoor |
|
Product code |
FOC-F-HDPE-BC+2×2.0-FRP+2*1.8-PBT-24xG657A1-10*4.5 |
|
Loose tube material and diameter |
PBT, 1.8(±0.2)mm |
|
Strength member material and size |
FRP rods, 2.0 mm |
|
Fiber cores |
24 |
|
Fiber core options |
G.652.D, G.657A1, G.657A2 |
|
Cable jacket color |
Black |
|
Sheath material |
HDPE |
|
Cable dimension, mm |
10*4.5 (oval） |
|
Tensile strength, N |
2200 |
|
Certification |
IEC-60794-1-2, ISO9001:2015 |
|
Length |
1000 m per drum |
PRODUCT VIDEO
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY

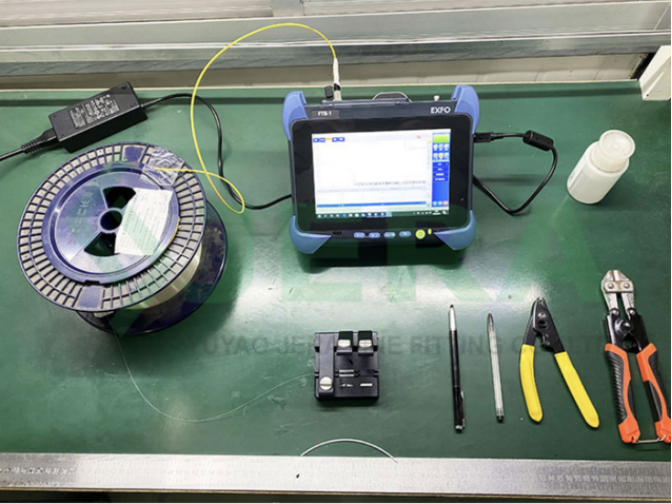

Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
