Dead end grip, 30T arashi grip
30T arashi grip
Description:

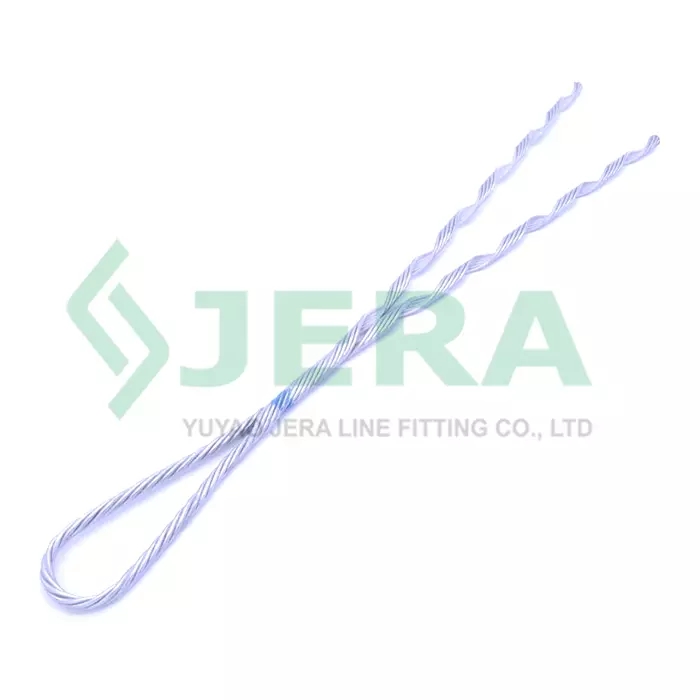

Helical wire dead-end grip, also called guy grip (巻付グリップ ), developed to tension the galvanized strand wire through thimble to steel loop as a part of concrete pole or metal tower.
- Cable type: Strand wire
- Cable size: 6.9 mm
- Span: not specified
- MBL: 32 KN
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Made of ASTM A475 galvanized steel, weather proof
- Hand installation, no quire other tools
- Wire inner processed with special glue and sand
- Preformed guy wire can be customized upon cable size and working load
- High mechanical tensile strength
- Superior environmental stability
- Fair price of dead end grip
SPECIFICATION
Helical wire dead-end grip, also called guy grip (巻付グリップ ), developed to tension the galvanized strand wire through thimble to steel loop as a part of concrete pole or metal tower.
Strand wire dead end grip is made of ASTM A475 steel and covered with galvanized finish, the inner of wire are processed with special glue and sand which will increase the force of friction between conductor. And due to the high quality of material and process method the preformed dead end is weather proof and the mechanical strength is up to 32KN.
APPLICATION
The installation of helical wire dead end grips is very easy and no require other tools, which allow reduce the installation charge and time during telecommunication line constructions. All jera produced dead end grips inspected by maximal tensile strength test, aging test, corrosion test and etc which are available in jera line interior laboratory.
Jera line is a confident factory who produce fiber optical cable and relevant accessories for aerial FTTx deployments. Besides the strand wire guy grips, we also supply suspension clamp, pole line bracket, hooks etc, please find more product in our product range.
Welcome to contact our sales team for more information about this strand wire dead end guy grips.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product codes |
Strand rope diameter |
Guy grip configuration |
Length, mm |
MBL, kN |
Color code |
|
30T, JS-30 |
30 mm2 (6.9 mm) |
2.5 * 5 |
610 |
32 |
Blue |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
