All-dielectric self-supporting cable 72 fiber cores
FOC-R-MDPE-BC+20*1520+2.0-FRP+RC+2,2-PBT
Description:
All-dielectric self-supporting cable 72 fibers cores all called multi tube ADSS cable designed to applied on pole to pole or tower to tower without lashing wire or other supports during FTTx line constructions.
The dielectrico autosoportado ADSS cable was non-metallic designed, reinforced by aramid yarns and FRP rod which has high tensile strength, small diameter and low weight.
- Application: Outdoor
- Fiber quantity: 72 fiber
- Dimensions: 10.6 mm
- Reinforcement: Aramid yarn/FRP
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Small cable diameter and weight, easy operation
- Appropriate for aerial or duct FTTX applications
- Loose tube are filled with a water-resistant filling compound
- Reinforced with ariamid yarn and FRP, high tensile strength
- HDPE cable jacket ,fire redundant protect and UV radiation protection
- Different fiber type are available upon requirements
- All dielectric, can be applied near high-voltage power distribution line
- Competitive price of adss cable
SPECIFICATION

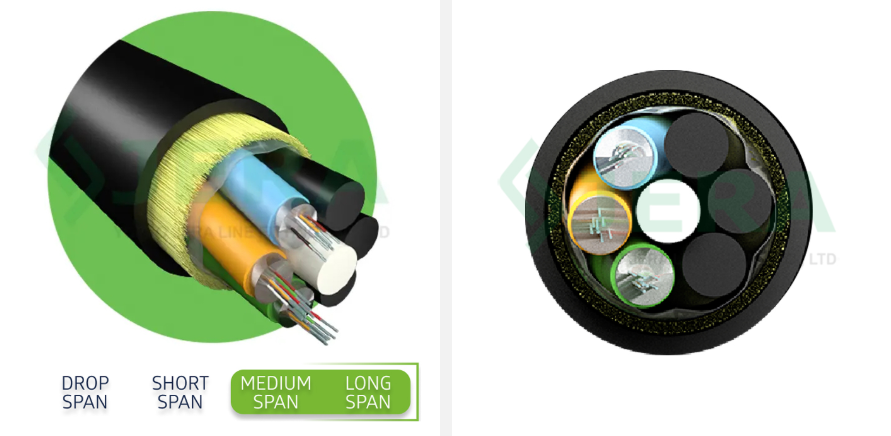

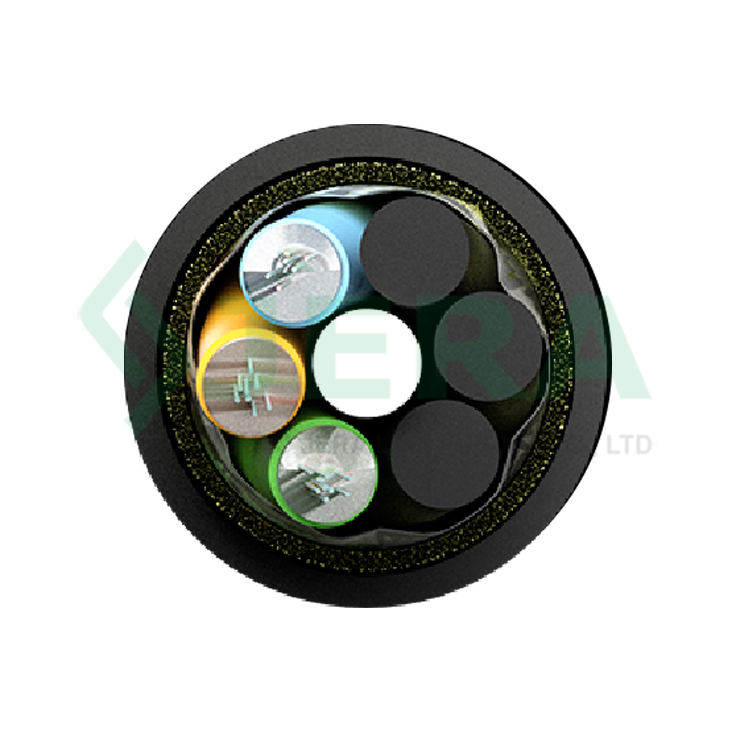

The cable consists of:
- The cable dimensions:
- Diameter: 10.6 ± 0.2mm
- Fiber quantity is 72 fiber.
- PBT Loose tube material
- Water-blocking Tape/Water-blocking Yarn
- Ariamid yarn Strength member
- HDPE jacket sheath, UV protected.
Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.
The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.
HDPE is a polymer material with high density, high strength and high chemical resistance.
APPLICATION

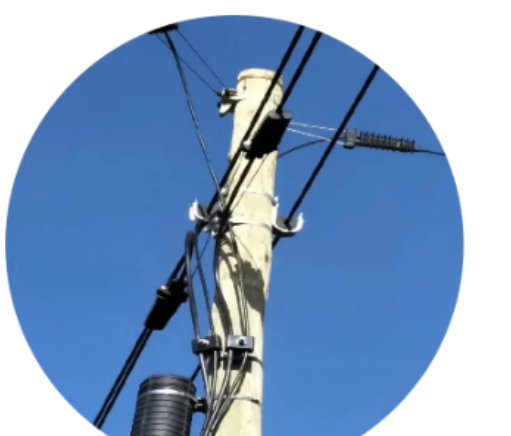

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.
Manufacturing
Watch Our Factory Video
Technical specification
|
Item |
Technology Parameters |
|
Applications |
Outdoor |
|
Product code |
FOC-R-MDPE-BC+20*1520+2,0-FRP+RC+2,2-PBT-Nx(fiber core type)-10.6 |
|
Loose tube material and diameter |
PBT, 2.2(±0.05)mm |
|
Fiber cores |
72 |
|
Max fiber count/tube |
12 |
|
No. Of Tubes / Fillers |
6/0 |
|
FRP/Coating(mm) |
2.3 |
|
W-Blocking Material |
Water-blocking Tape/Water-blocking Yarn |
|
Strength member |
Ariamid yarn |
|
Fiber core options |
G.652.D, G.657A1, G.657A2 |
|
Cable jacket color |
Black |
|
Sheath thickness |
Non. 1.65mm |
|
Sheath material |
HDPE |
|
Cable dimension,mm |
10.6 (±0.2） |
|
MAT (N) |
2500 |
|
N.weight (kg/km) |
83 |
|
RCD Initial Sag |
Up To 100m, Sag 1.0% |
|
Worst Load Condition |
Wind Velocity : 30m/s, Ice Thickness : 0mm |
|
Certification |
IEC-60794-1-2, ISO9001:2015 |
PRODUCT VIDEO
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY

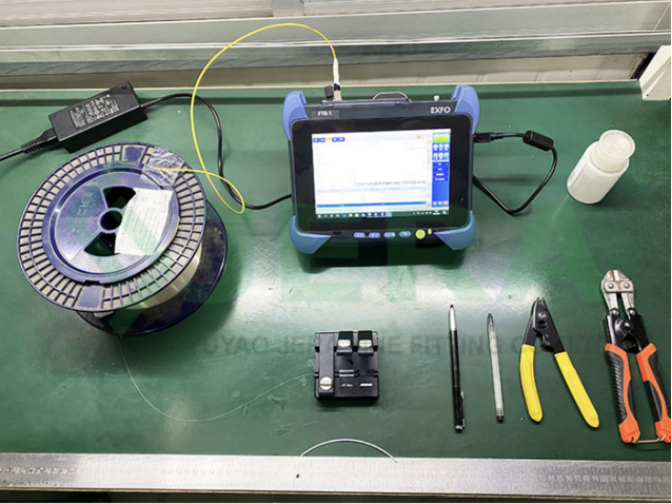

Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
