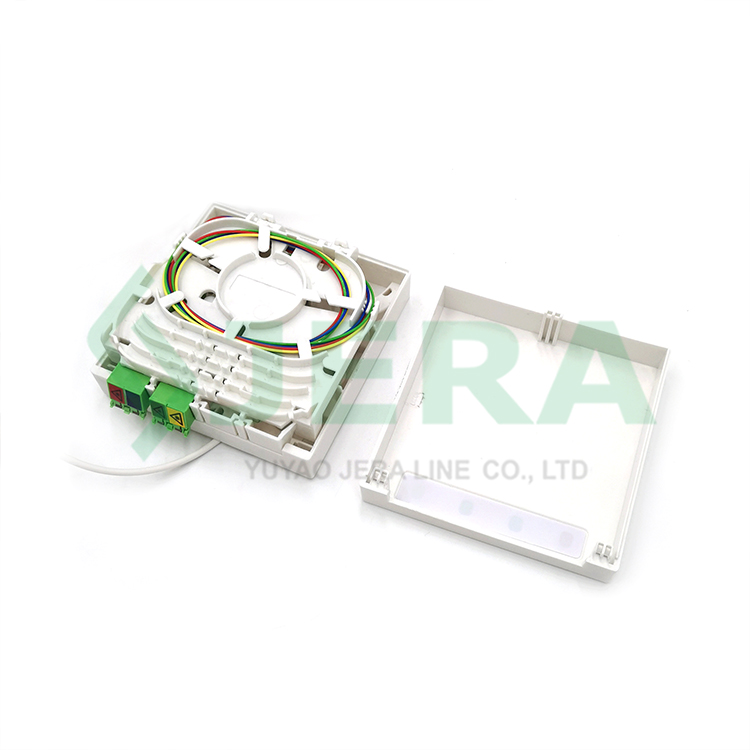

Access terminal box ATB-02
ATB-02
Description:

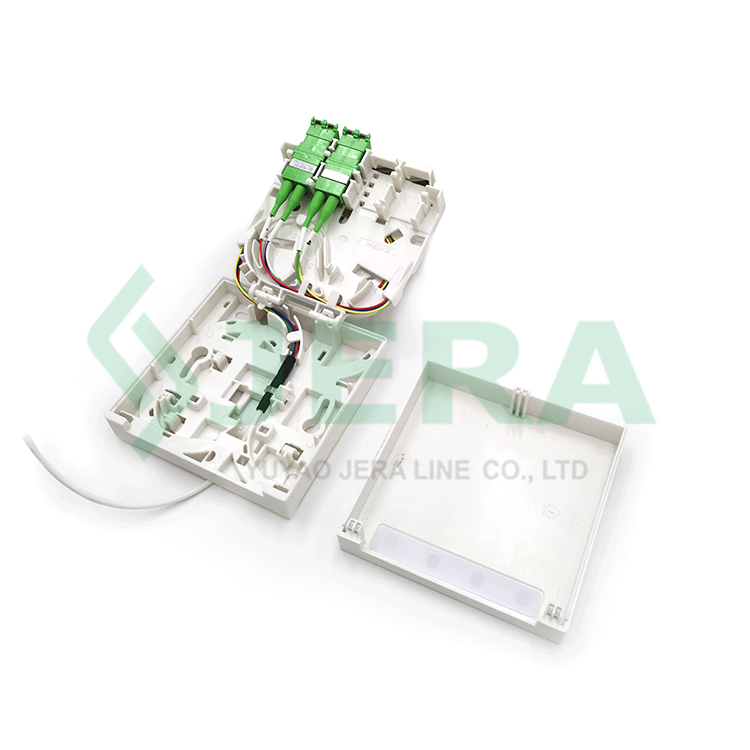

Access terminal box ATB-02 either called pre-terminated fiber optic socket is used to connect passive optical network units. The Socket contains 2 LC duplex shutter type adapters, and additional 20 meters round LSZH CPR Eca drop cable of four fibers. Access terminal box is designed for indoor wall installation of optical distribution network. Read more about access terminal box.
- Application: Indoor
- Material： ABS
- Max splicing: 4 fibers
- Adapter SC type: 2
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Compact and cost-effective design.
- Pleasant indoor appearance.
- Quick application speed.
- Dust-free shutter type adapters.
- Adapter ports: 4 LC duplex type.

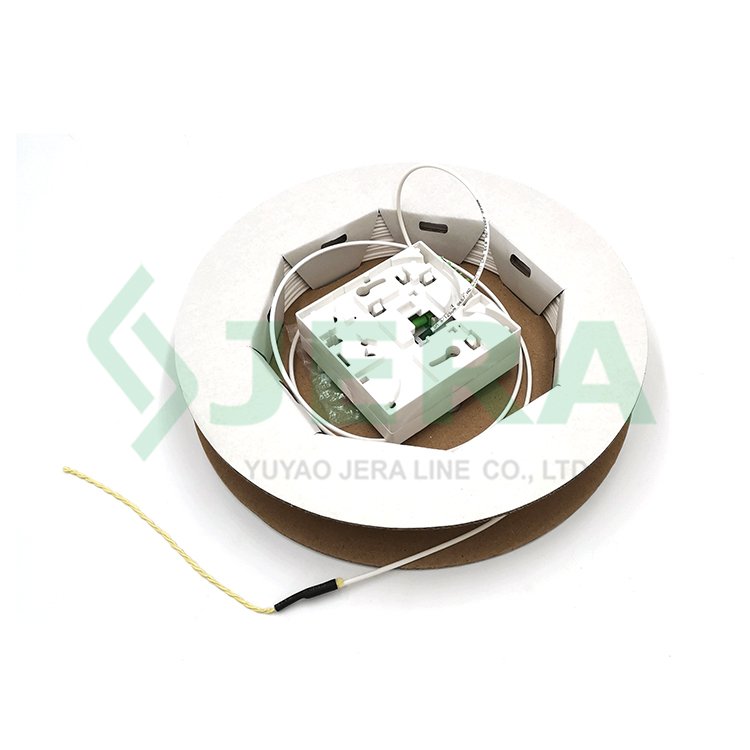

- 4 core LSZH jacket 20-meter round drop cable.
- Laser beam eyes protection.
- Color marking cable routes

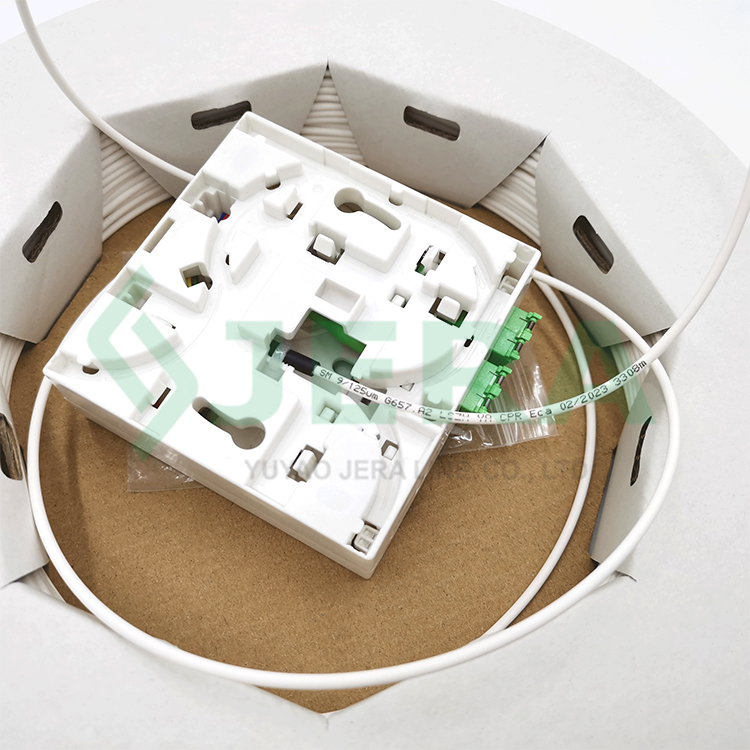

- Wall mount access terminal box
SPECIFICATION
The product consist of:
- Plastic socket, made of ABS
- Cover lid, made of ABS.
- Shutter type LC/APC duplex adapter
- LC/APC 4 core drop cable
- Wall mount kit

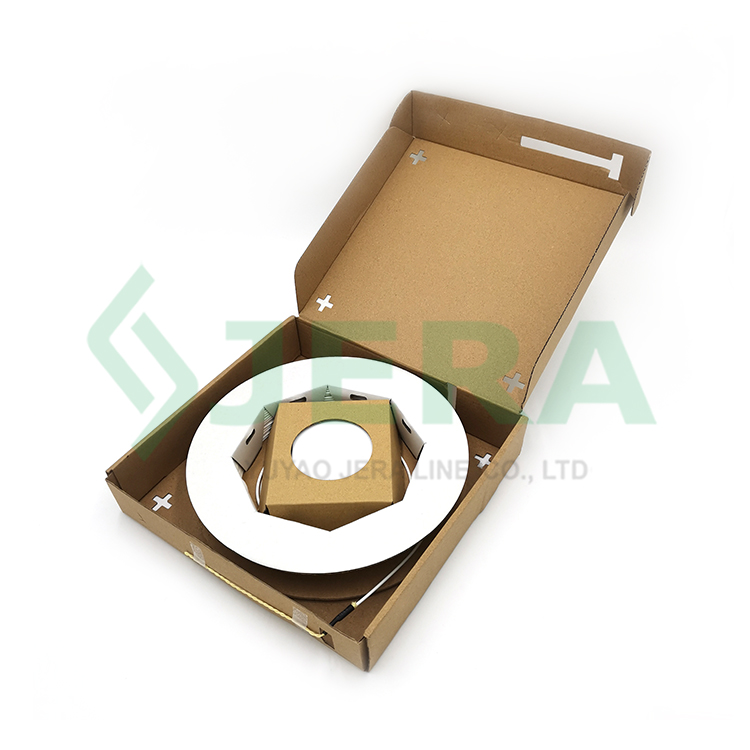

Optical fiber sockets are single-mode according to the type of optical fiber connected. The specifications of information sockets include single – four ports. Jera line is access terminal China factory, the product customization is available. Ftth pizza fiber access terminal box is made of convenient carton for easy carry and rollable withdraw.
ABS plastic is a terpolymer of three monomers: acrylonitrile (A), butadiene (B) and styrene (S). A makes it resistant to chemical corrosion, heat, and has a certain surface hardness, B makes it have high elasticity and toughness, and S makes it have the processing and molding characteristics of thermoplastics and improve electrical properties.
Shutter type SC/APC adapter is simple fiber optic adapter with angle polishing and dust prove lid. The lid also protect the end user’s eyes from laser beam.
Pre terminated drop cable is made of LSZH jacket for indoor application. The length is 20 meters. 4 fibers are G657A2 standard, single mode.
Wall kit consist of screw for indoor wall applications.
APPLICATION
Applied to indoor. For connection of optical network units by splicing or quick LC duplex connection.
Manufacturing
Watch Our Factory Video
Technical specification
|
Dimensions (L x D x H). mm |
100* 100*20 |
|
Capacity |
4 Fiber |
|
Adapter ports |
2 for regular SC/LC size adapters. |
|
Cable ports |
1 ports for round cable, up to 3 mm. |
|
Max splicing |
4 fibers |
|
Drop cable |
3.0 mm LSZH cable 20 meters |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
