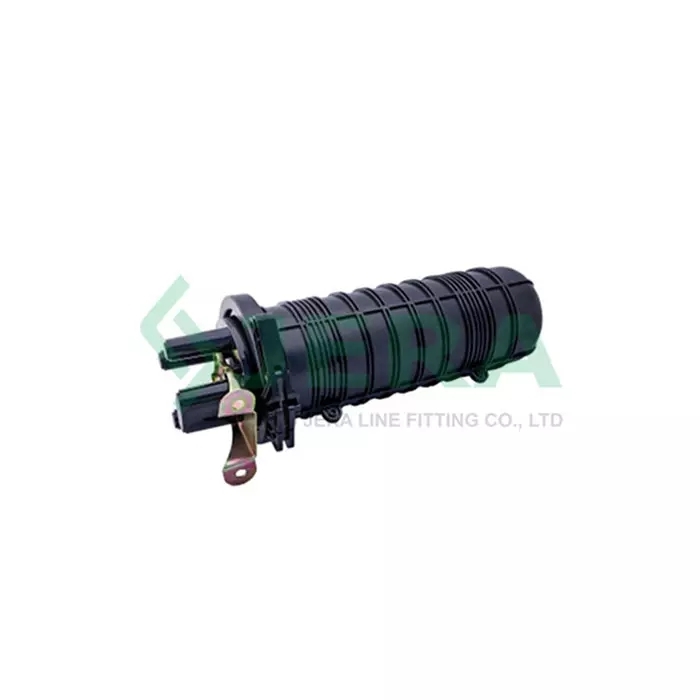

Fiber optic splice closure, FOSC-3, 96 joints
FOSC-3, 96 joints
Description:
96 joints fiber optic splice closure FOSC-3, also called dome type fiber optic closure, is a device used for protecting fiber cable splices in straight-through and branching applications. It’s can be placed in underground, aerial, wall-mounting, pole-mounting and duct-mounting routes during FTTX network constructions.
- Feeding cable: 3 of ∅8-16
- Oval cable: 1 of 25*40
- Max splicing capacity: 48 (96*)
- Max splicing capacity per tray:12 (24*)
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Innovative elastic integrated seal fitting
- 3 round inputs and 1 oval input, maximum capacity 96 fibers
- Splice tray capacity is 12 (24) fibers, fibers are stored in 2 layers
- Curved radius meets with international standard
- Made of high quality termoplastic, guarantee wet and dust proof
- Applied in through, branch or mid span splice locations
- High mechanical strengths
- Competitive price
SPECIFICATION
96 joints fiber optic splice closure FOSC-3, also called dome type fiber optic closure, is a device used for protecting fiber cable splices in straight-through and branching applications. It’s can be placed in underground, aerial, wall-mounting, pole-mounting and duct-mounting routes during FTTX network constructions.

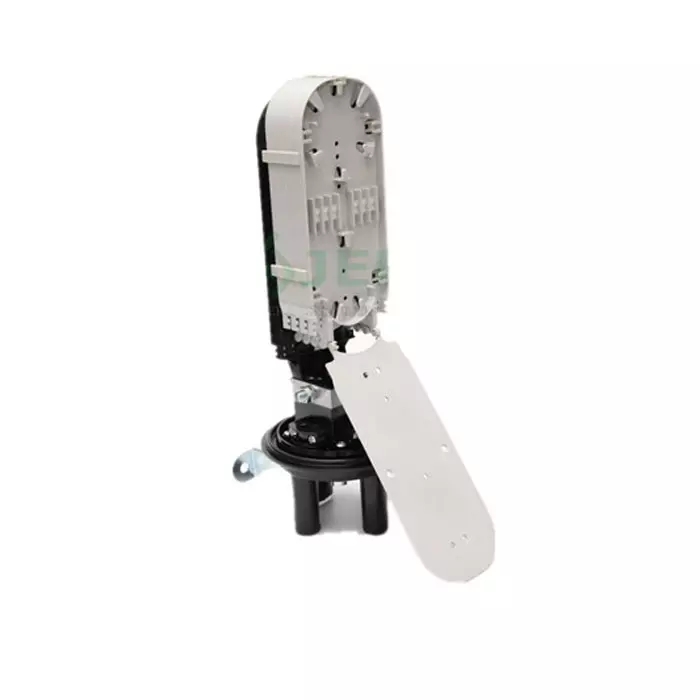

Vertical fiber optic closure looks like a dome,the dome shape makes it easy to be buried in many applications.The number of inlet/outlet ports of the dome fiber optic closure also varies with application needs.
Jear FOSC are made of 1st grade UV resistant plastic which is weather and rust proof provide confident performance whether in overhead or buried underground during FTTX network constructions. We also provide relevant accessories such as pole bracket, stainless steel banding, cable slack storage and etc which are available in jera line product range.
APPLICATION
The package of horizontal fiber optic closure is carton box. The pallet packing method is available as well, check more details with our sales.
Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.
We supply fiber optical cable accessories for FTTH constructions and provide the whole kit of accessories to our customers, such as fiber optic cable, cable clamps, cable bracket, fiber optic termination boxes, PLC splitters, patch cord and so on.
Welcome to contact us about 96 joints fiber optic splice closure pirce.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
FOSC-3 |
|
Round cable dimensions, mm: |
3 of ∅8-16 |
|
Oval cable dimensions, mm: |
1 of 25×40 |
|
Max splicing capacity: |
48 (96*) |
|
Max splicing capacity per tray: |
12 (24*) |
|
Materials |
UV resistant plastic |
|
IP protection |
67 |
|
Overall dimensions, mm |
435×180×160 |
* two layers for storage of fiber splicing tubes
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
FAQ
-
1. What area are you in?
We are the factory, located in China busy in production of aerial FTTH solution consist of:
- fiber cable,
- pre-terminated patch cords,
- cable clamps and brackets,
- outdoor and indoor termination boxes, access terminals
We produce a solution for optical distribution network ODN.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We offer very competitive price.
- We produce a solution, with suitable product recommendations.
- We have the stable quality control system.
- After sales product guarantee and support.
- Our products were adjusted to work with each other to operate in a system.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust. -
5. Why you can offer competitive prices?
Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/
-
6. Why can you offer stable quality?
Because we have quality system, find more details https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.
-
8. How can I save logistics cost working with you?
You can decrease up to 5% of your logistics cost working with us.
Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com) -
9. What are the main products that you produce?
We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.
-
10. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
11. Can you produce OEM orders?
Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.
-
12. Can you offer me product’s Customization and R & D?
Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
13. What's your MOQ of new customers?
Absence of MOQ criteria for first order.
-
14. Can you provide free samples?
Yes, we provide samples, which will same to the order.
-
15. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
16. Where can I see yours’s products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
17. How to get in touch with you?
-
18. Where can I download your latest catalog
Here you can do it: https://www.jera-fiber.com/about-us/download-catalog-2/
-
19. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
