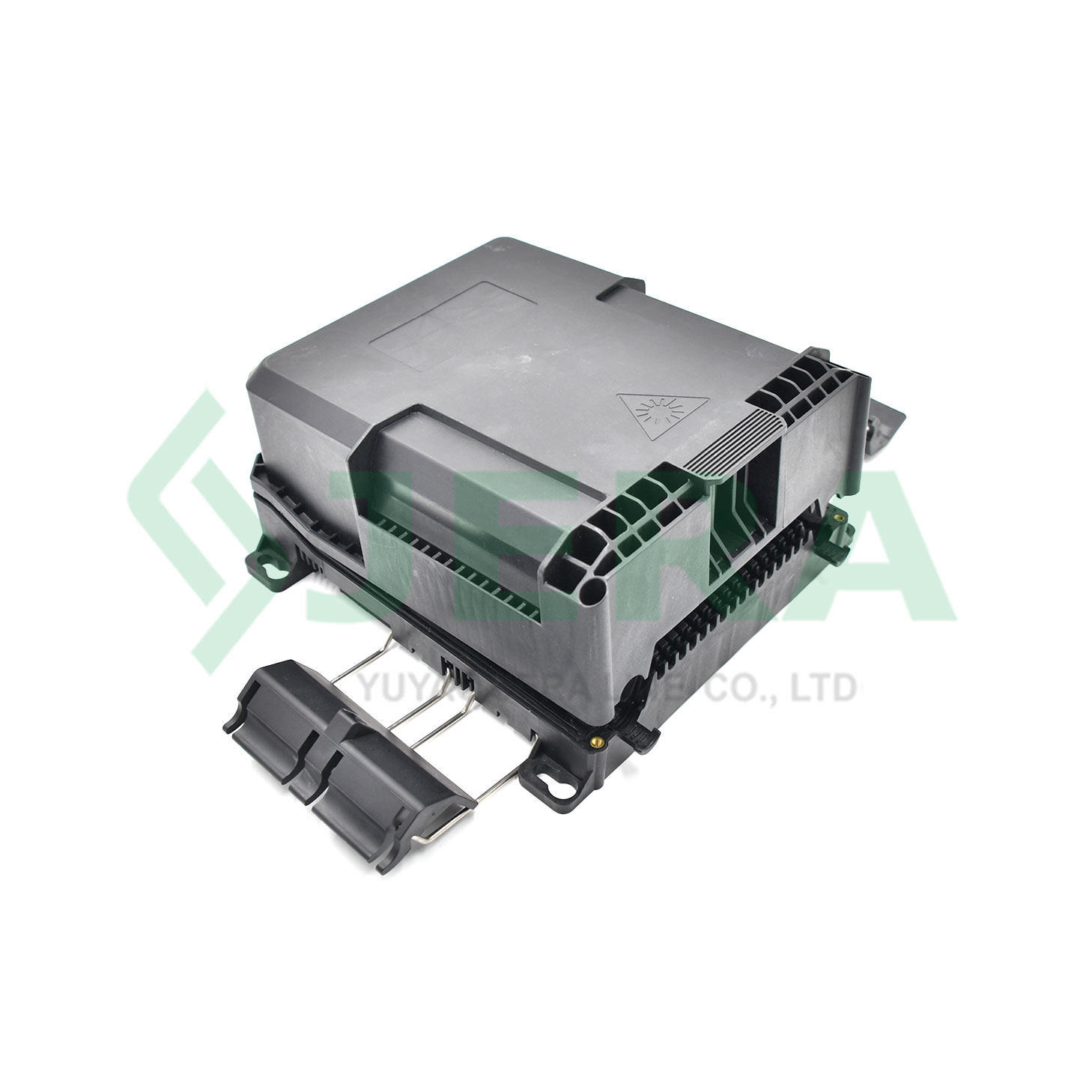

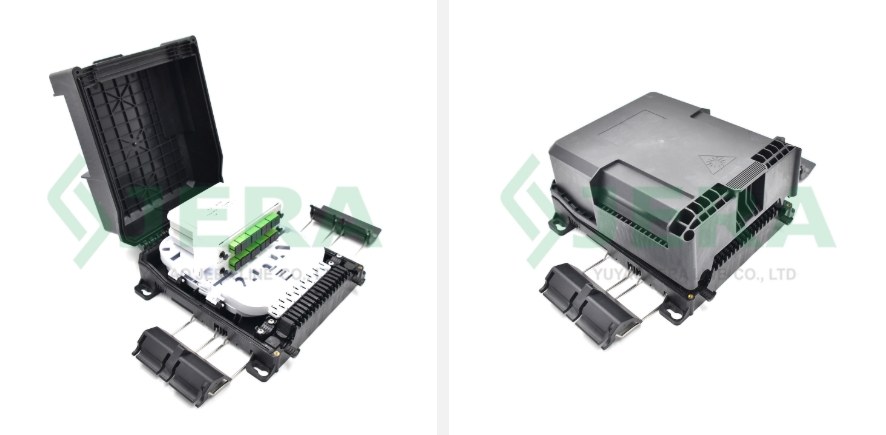

16 ports FTTH splitter box FODB-16HC
FODB-16HC
Description:
Fiber optic 16 ports FTTH splitter box FODB-16HC other called 16 cores fiber termination box, is a device developed to terminate or distribute feeder optic cable to fiber optical cords, patch cords, pigtail cords on the routes of last mile to users during FTTX network constructions.
- Feeding cable: 2 of Ø5-14
- Drop cable: 16 of Ø2-3
- Max splicing capacity: 40 (80*)
- Adapter SC type: None
- Product detail
- Specification
- Video
- Inquiry
Key Features
- 2 cable inputs and 17 outputs ports
- Intergrated seal sealed , wet and dust proof
- No ground device, anti-vandal and equipped with lock and key
- Made of high quality ABS and PVC, with high mechanical strength
- Provide quick and easy access for drop cable connection
- Easy operation, screw installation on wall
- Wide enough internal space for fiber bending radius
- Excellent environment stability
- High mechanical strengths
- Competitive price
SPECIFICATION
This fiber FTTH termination box is made of high strength ABS & PVC, manufacturing process is plastic injection technology, which is available at Jera line factory.

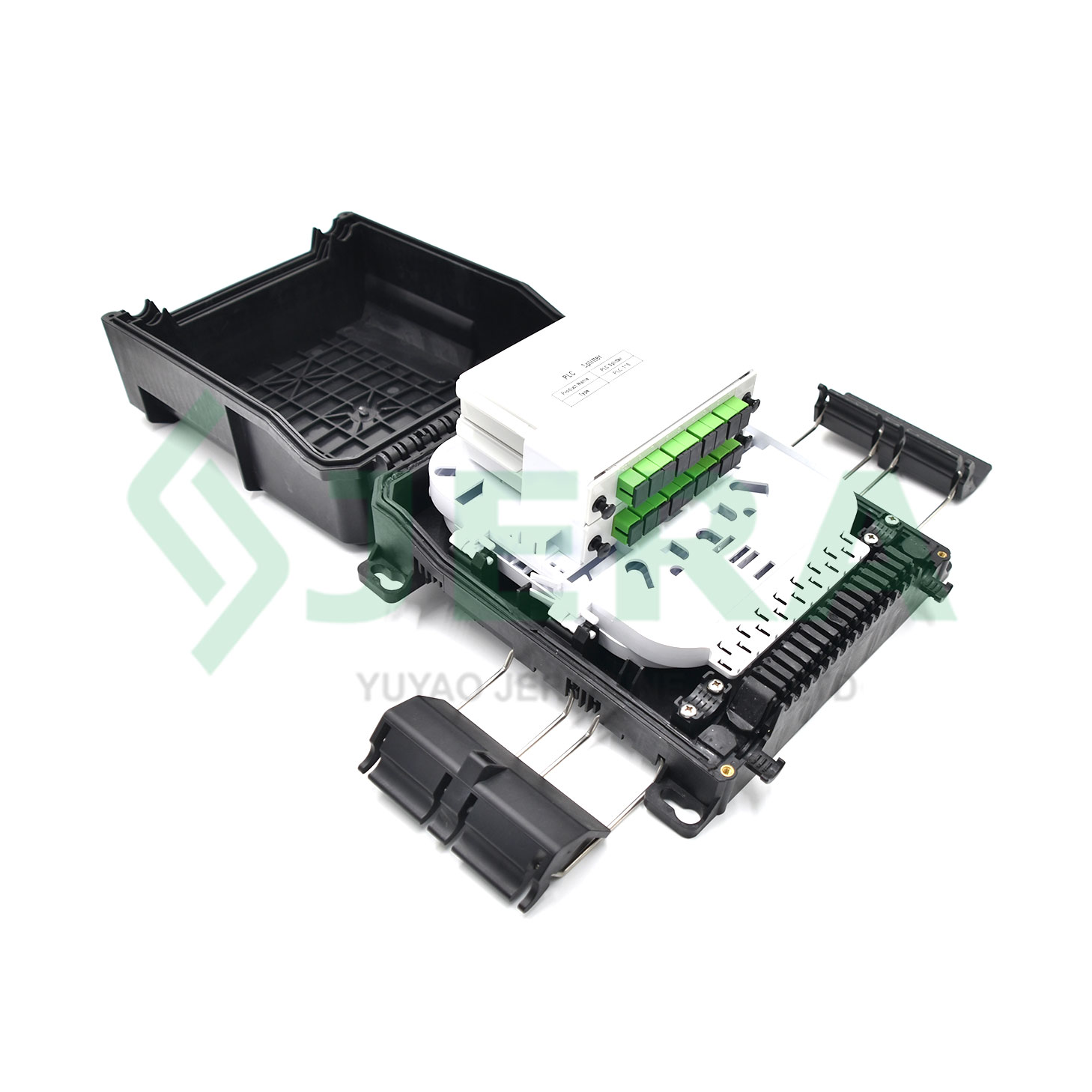

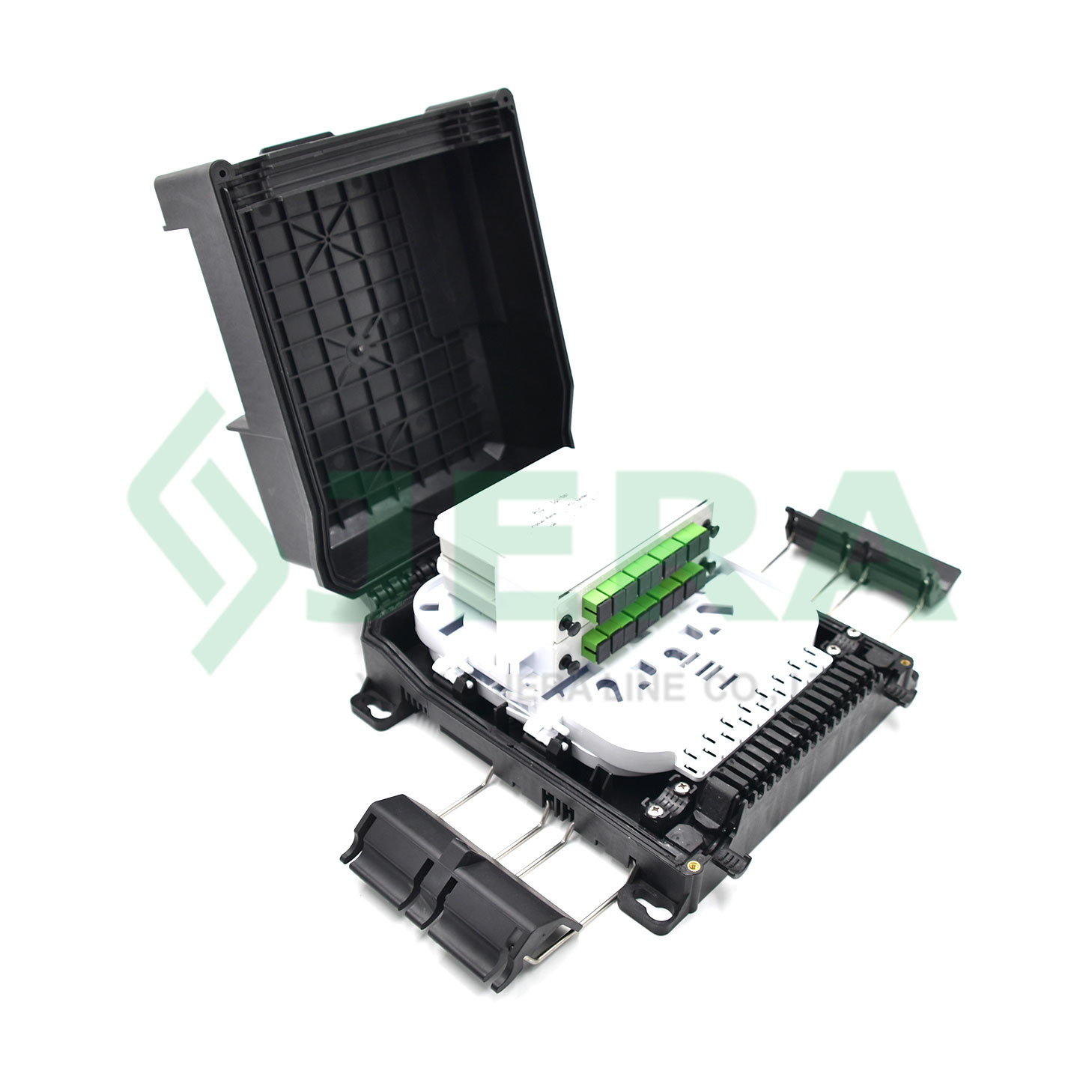

The installation of this aerial fiber optic termination box is very easy and convenient, box can be installed on wall with 4 galvanized screw(18*4). This termination box itself allows installation with SC fiber adaptor up to 16. Splice tray allow install with splice protection sleeves or PLC splitters. All relevant accessories are available in jera line product range.
APPLICATION
Jera fiber optic terminal box passed a series of standard related type tests which are available in our internal laboratory, such as +70℃~-40℃Temperature and humidity cycling test, T, Aging test,Corrosion resistance test etc.
Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.
We supply fiber optical cable accessories for FTTH constructions and provide the whole kit of accessories to our customers, such as fiber optic cable, cable clamps, cable bracket, fiber optic termination boxes, PLC splitters, patch cord and so on.
Welcome to contact us for further details.
Manufacturing
Watch Our Factory Video
Technical specification
| Product code | FODB-16HC | Feeding cable dimension | 2 of∅5-14and transit of ∅5-12 |
| Drop cable dimension | 16 of ∅2-3 | Max fiber splicing capacity | 40 (80*) |
| Adapters , SC type | None (or may be equipped with adapter tray instead of cassette tray) | Cassette PLC splitters C2 128x100x25mm | 1 of 1:16 or 2 of 1:8 |
| Overall dimensions ( mm ) | 271x237x95 | Blockless PLC splitters 60x7x4mm | 1 of 1:16 or 2 of 1:8 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test

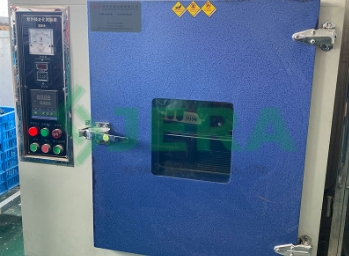

UV & temperature
test
Corrozion aging
test
Fire resistance
test
