10M Steel Armored Fiber Optic Patch Cable
10M Steel Armored Fiber Optic Patch Cable
Description:

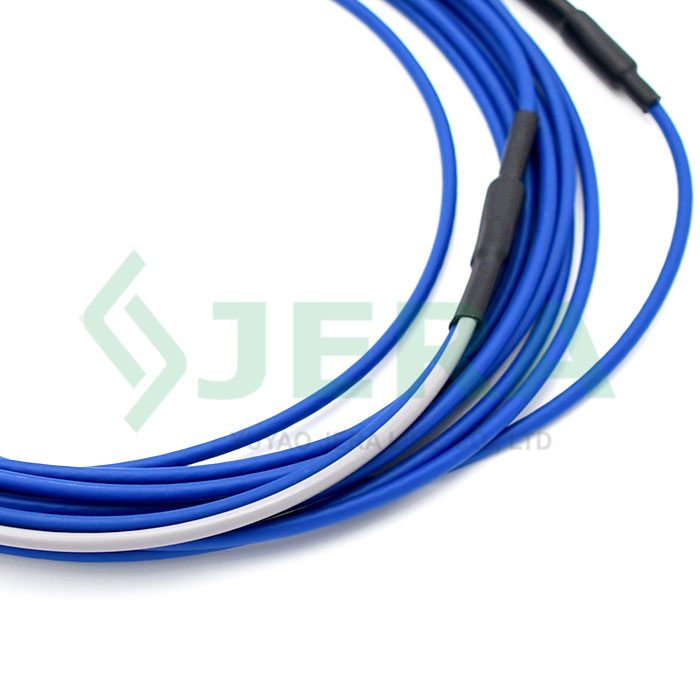

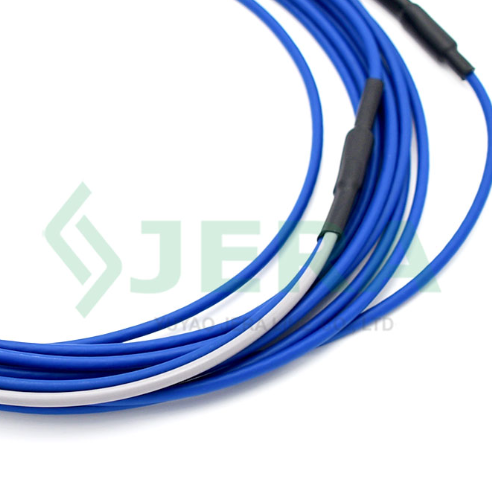

10M Steel Armored Fiber Optic Patch Cable also known as LC – LC Duplex Fiber Optic Patch cord Cable, is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as “interconnect-style cabling”.
- Type：1×4
- Adapter type: LC
- Polish type: APC
- Area: Indoor
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Simplex ,Duplex and Multi-core accessories for standard or customized structure
- Fully compliant with the standards of YD-T826/1996 With PC,UPC,APC 3 types

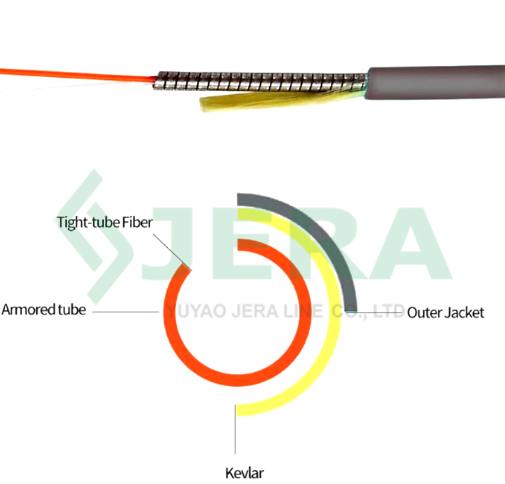

- Fiber diameter: Φ0.9, Φ2.0, Φ3.0, both SM G.657A, G.657B, G.655, G.652D and MM OM1/OM2/OM3 Ceramic ferrules, Protection of metal tube with small caliber
- More convenient to deploy and ensure safty Avoid damage from torsion
- High tensile and stress coefficient
- Convenient for application and highly secure
- Application without damage to cable
- Manufacture without damage to cable
- Cost cutting for maintenance
- Fit all kinds of connectors:FC,SC,ST,LC,MU,E2000,D4,SMA and DIN
SPECIFICATION
- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: “2C” means two cores
- Cable Diameter: Φ3.0mm, Φ2.0mm, Φ0.9mm
- Cable Length: 1, 2, 3 meter or customized
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
APPLICATION
- Communication rooms
- FTTH (Fiber to The Home)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Welcome to contact us about this Duplex Indoor Armored Fiber Optic Cable.
Manufacturing
Watch Our Factory Video
Technical specification
|
Parameter |
Unit |
FC, SC, LC/ Armoured fiber patch cord |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Operating temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
|
Storage temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
|
Cable diameter |
mm |
Φ3.0, Φ2.0, Φ0.9 |
Φ3.0, Φ2.0, Φ0.9 |
Φ3.0, Φ2.0, Φ0.9 |
φ3.0, φ2.0, φ0.9 |
||||||||
